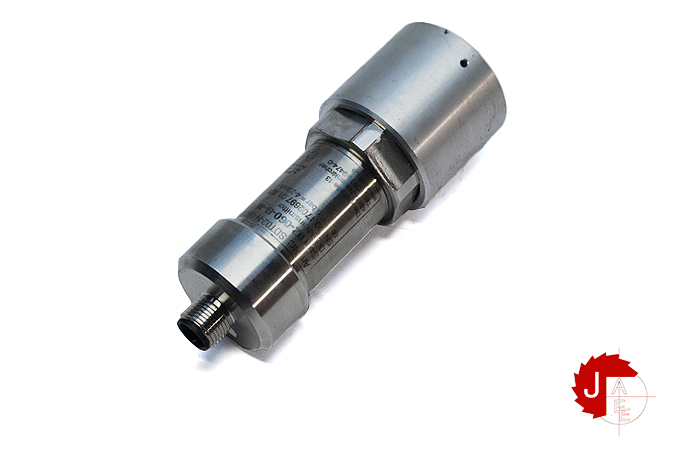

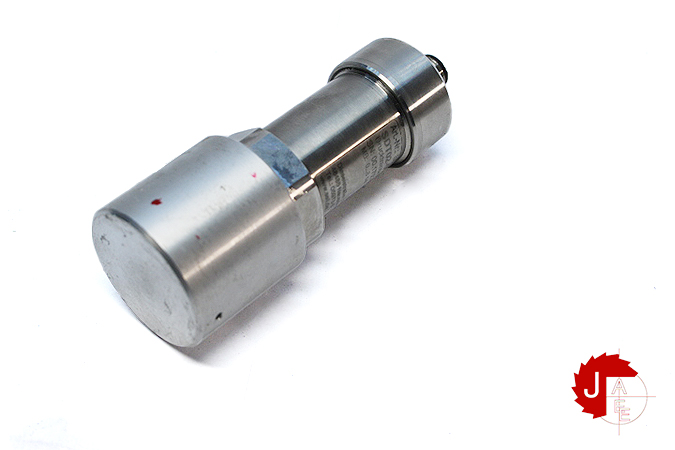

Seli SDT02-060-B-M PRESSURE TRANSDUCER

Seli SDT02-060-B-M PRESSURE TRANSDUCER

Manufacturer: Seli
Type: PRESSURE TRANSDUCER

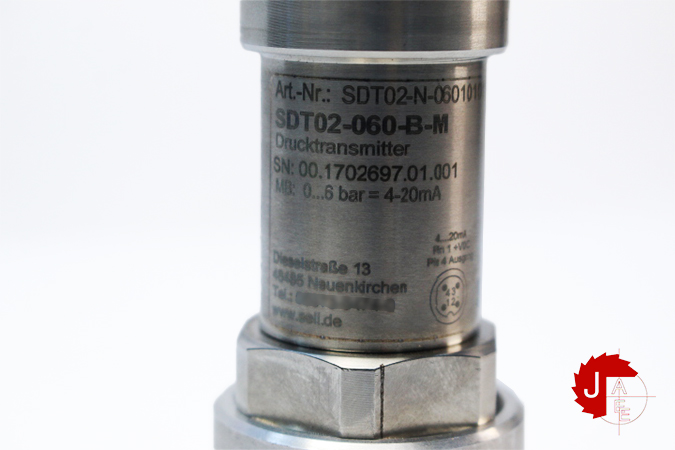

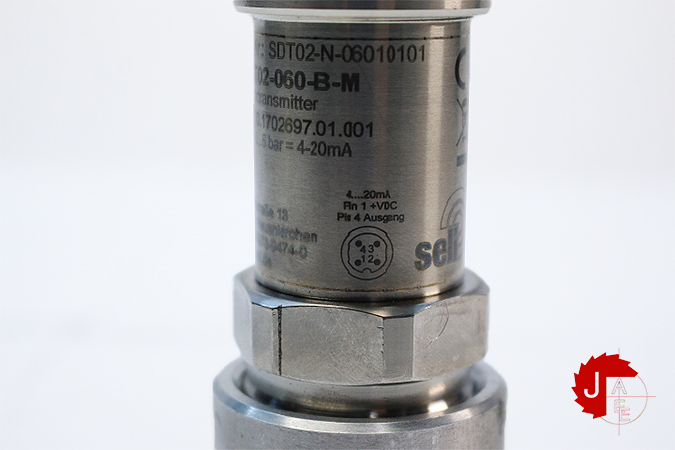

Model: SDT02-060-B-M

medium-affected components and housing made of stainless steel
high temperature range
nominal pressure range up to 40 bar
gauge pressure
configurable remotely via PC
medium-affected components made of stainless steel No. 1.4435
housing made of stainless steel 1.4435
4-times overload

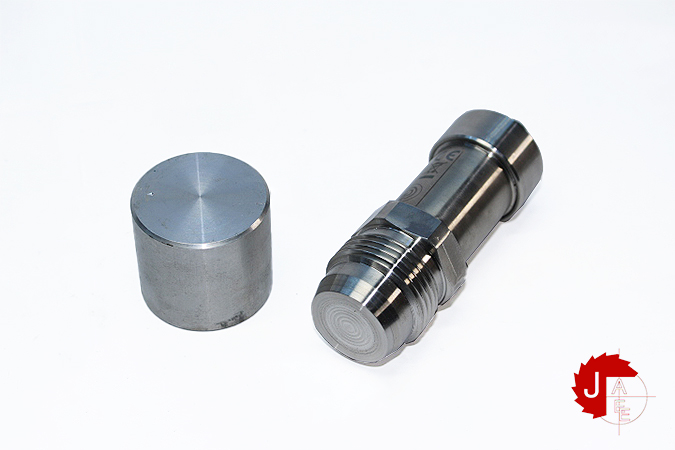

complete flush mounted membrane
FDA, EHEDG conform

accuracy in accordance with IEC 60770: 0.5% FSO
long-term stability
protected against polarity reversal and short circuit
temperature range applications:
measuring substance (permanent): – 20 ºC up to 110ºC
measuring substance maximum (1/2h): up to 140ºC
response time 40 – 300 ms (dependant on measurement reading variations; large leap = fast, small leap = slow (owing to window method)
protection class IP67 according to EN 60529

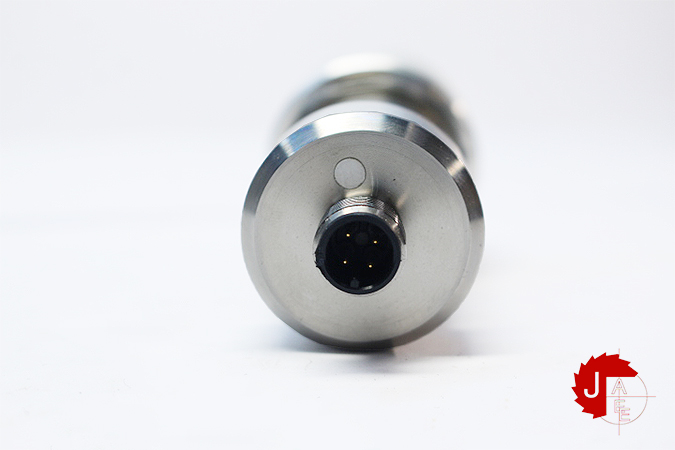

M12 plug connector made of stainless steel
adjustable damping
