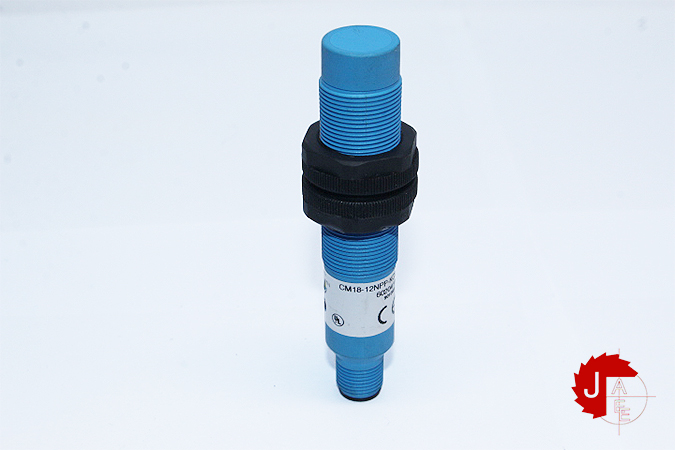

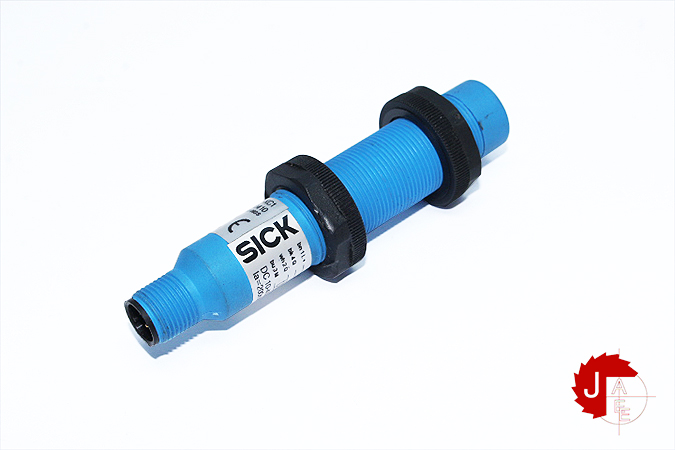

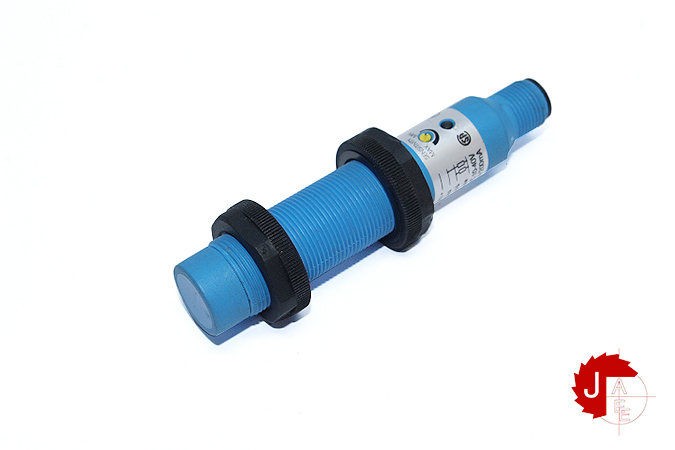

SICK CM18-12NPP-KC1 CAPACITIVE PROXIMITY SENSORS 6020410

SICK CM18-12NPP-KC1 CAPACITIVE PROXIMITY SENSORS 6020410

Manufacturer: SICK
Type: CAPACITIVE PROXIMITY SENSORS

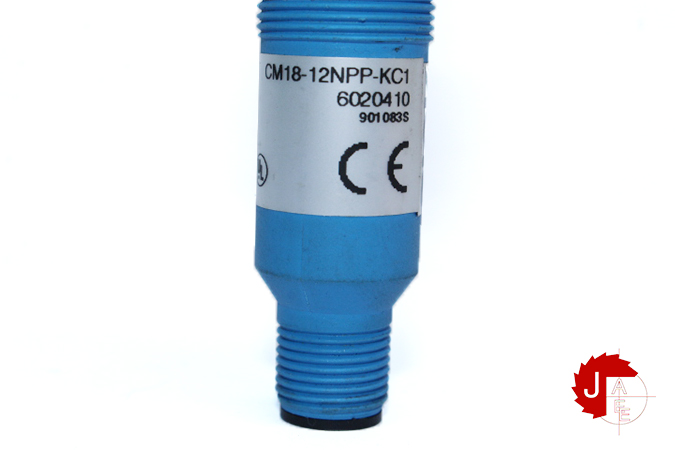

Model: CM18-12NPP-KC1
Art No: 6020410

Housing Cylindrical thread design
Thread size M18
Diameter Ø 18 mm
Sensing range Sn 3 mm … 12 mm
Safe sensing range Sa 8.64 mm
Installation type Non-flush
Switching frequency 30 Hz

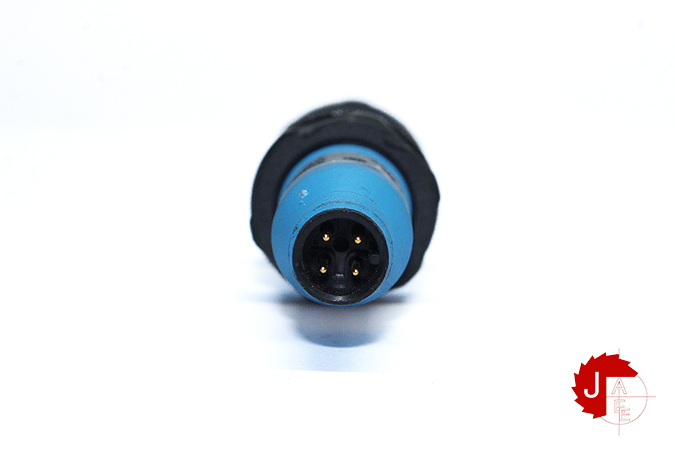

Connection type Male connector M12, 4-pin
Switching output PNP
Output function Complementary

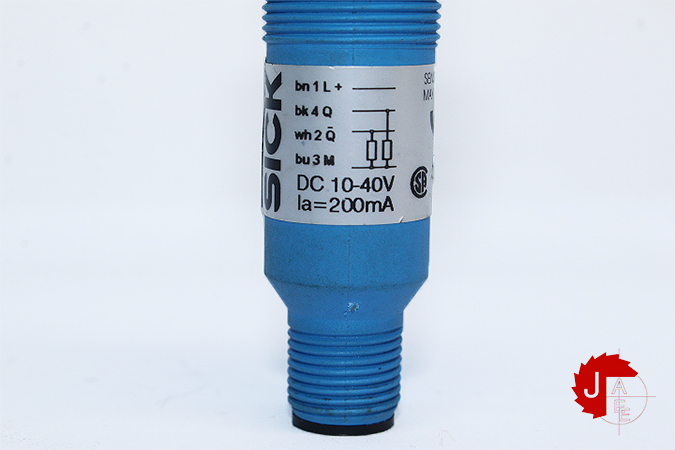

Electrical wiring DC 4-wire
Adjustment Potentiometer, 270° (Sensitivity)
Enclosure rating IP67

Supply voltage 10 V DC … 36 V DC
Ripple ≤ 10 %
Voltage drop ≤ 2.5 V DC
Current consumption ≤ 10 mA
Time delay before availability ≤ 100 ms
