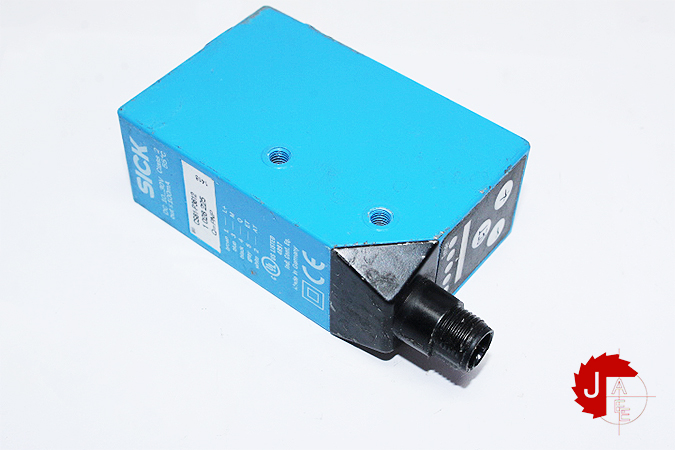

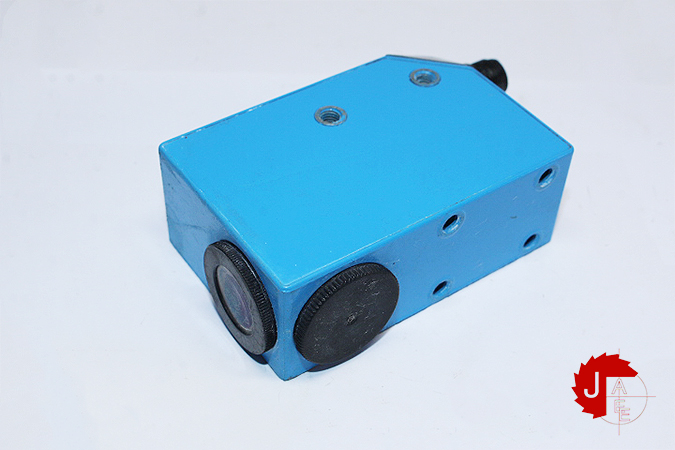

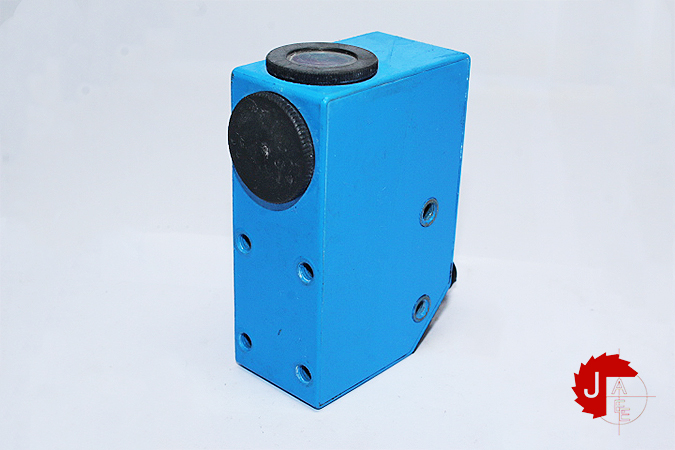

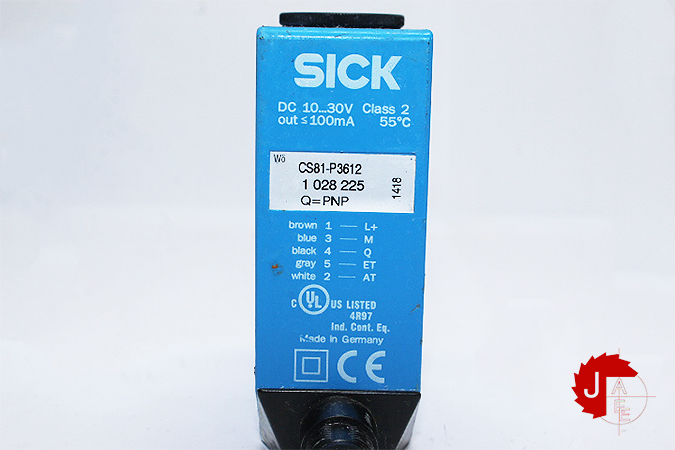

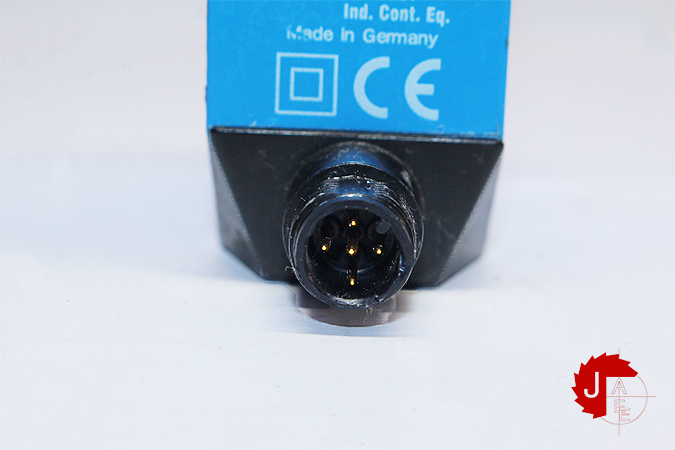

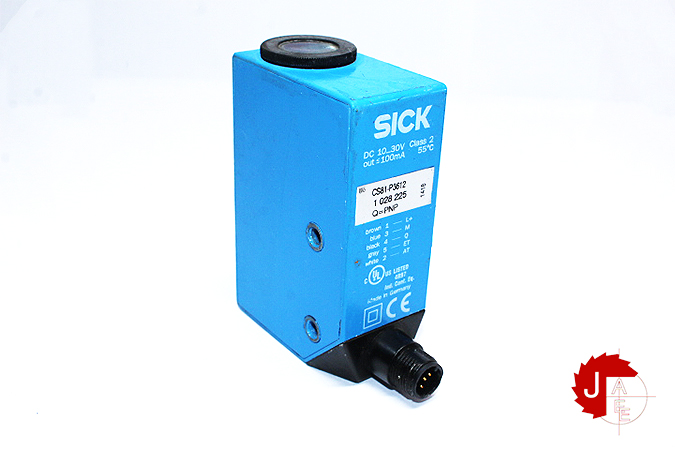

Manufacturer: SICK
Type: COLOR SENSORS
Model: CS81-P3612
Part No:1028225
Sensing distance: ≤ 60 mm
Sensing distance tolerance: ± 9 mm
Supply voltage: 10 V DC … 30 V DC
Switching output: PNP
Current consumption: < 120 mA
Light source: LED, RGB
Wave length: 640 nm, 525 nm, 470 nm
Light spot size: 13 mm x 13 mm

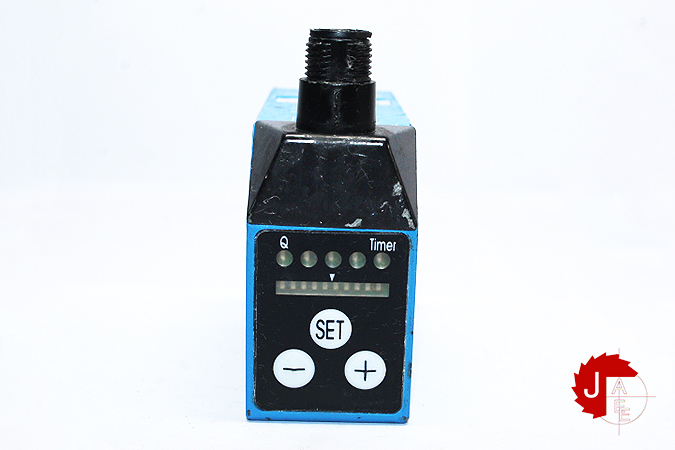

Adjustment: Teach-in button Teach-in mode Static 1-point teach-in
Switching output (voltage) PNP: HIGH = UV ≤ 2 V / LOW approx. 0 V Output (channel): 1 color
Output current Imax.: 100 mA
Enclosure rating: IP67
| Manufacturer | SICK |
|---|---|
| Model | S81-P3612 COLOR SENSORS 1028225 |
| Condition | Used |
