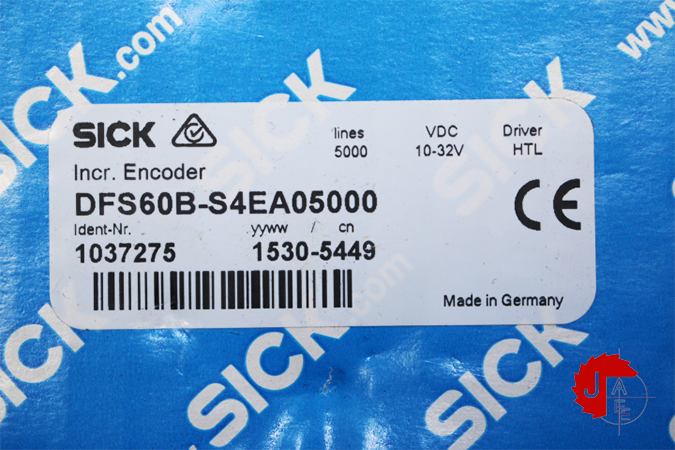

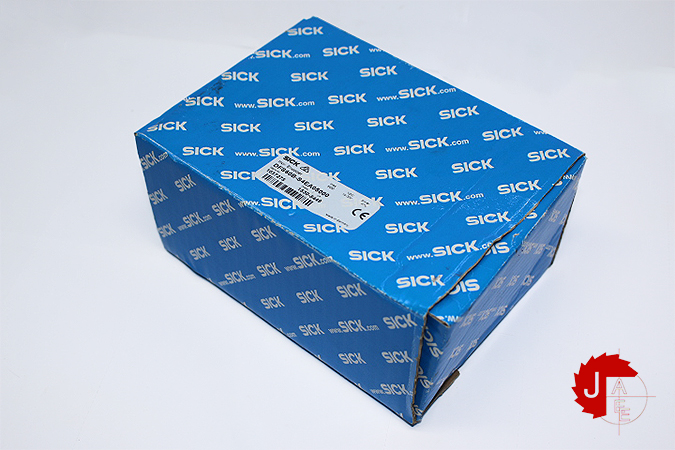

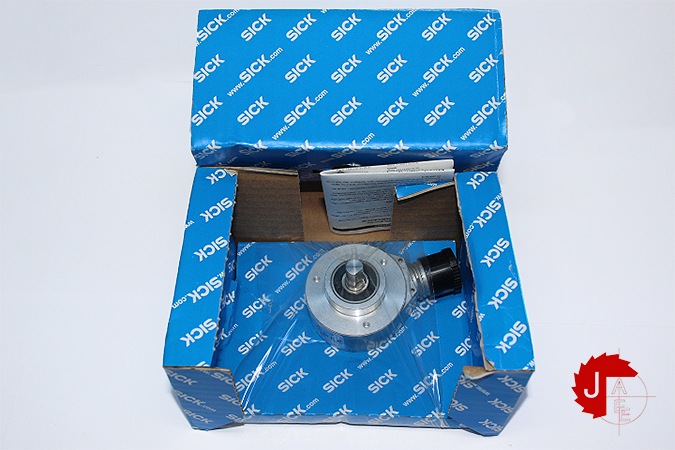

SICK DFS60B-S4EA05000 INCREMENTAL ENCODERS 1037275

SICK DFS60B-S4EA05000 INCREMENTAL ENCODERS 1037275

Manufacturer: SICK
Type: INCREMENTAL ENCODERS
Model: DFS60B-S4EA05000
Part No: 1037275

Performance
Pulses per revolution 5,000
Measuring step 90°, electric/pulses per revolution
Measuring step deviation at non binary number of lines ± 0.01°
Error limits ± 0.05°

Interfaces
Communication interface Incremental
Communication Interface detail HTL / Push pull
Number of signal channels 6-channel
Initialization time 40 ms
Output frequency ≤ 600 kHz
Load current ≤ 30 mA
Power consumption ≤ 0.5 W (without load)

Electrical data
Connection type Male connector, M23, 12-pin, radial
Supply voltage 10 … 32 V
Reference signal, number 1
Reference signal, position 90°, electric, logically gated with A and B

Mechanical data
Mechanical design Solid shaft, face mount flange
Shaft diameter 10 mm
Shaft length 19 mm
Weight + 0.3 kg
Shaft material Stainless steel
Flange material Aluminum
Housing material Aluminum die cast
