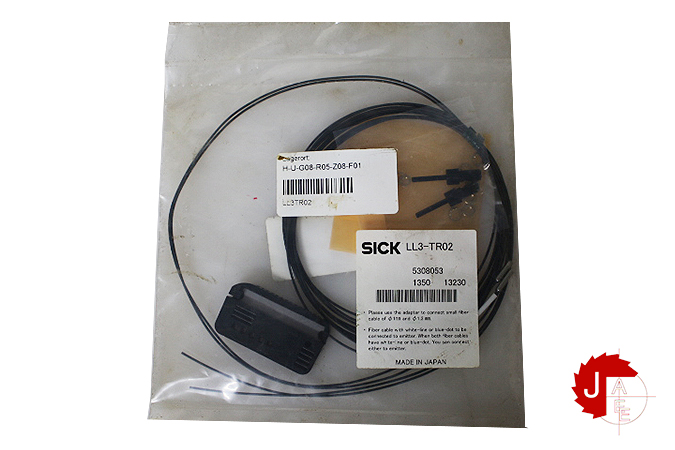

SICK LL3-TR02 Fibers LL3 5308053

Manufacturer: SICK
Type: Fibers LL3
Model: LL3-TR02
Part No: 5308053

Device type Fibers
Functional principle Through-beam system
Functional principle detail Consisting of a sender and a receiver
For fiber-optic sensor GLL170(T), WLL180T, WLL80
Fiber length 2,000 mm
Fiber material Polymethylmethacrylat (PMMA)
Jacket material Polyethylen (PE)
Fiber head material Stainless steel
Outer diameter, fiber-optic cable connection 1 mm
Fiber-optic cable cuttable ✔
Thread diameter (housing) M3
Fiber-optic head design Threaded sleeve
Fiber arrangement Multi-fiber – fiber bundle
Core structure 4 x Ø 0.25 mm Multi-fiber – fiber bundle
Angle of dispersion < 60° No
Compatibility with infrared light (1,450 nm) No
Application High flexible (static), Robotics (dynamic flexible)
Highly flexible/elastic fibers (bend radius 1–4 mm) Yes
Adapter end sleeves required Yes
Angle of dispersion 60°
Integrated lens No
Minimal object diameter 0.1 mm
Included with delivery Mounting, 4 x M3 hexagon nut, 4 x washer, adapter sleeves, BF-WLL160-10 (1.0 mm) adapter sleeves, FC fiber cutter (5304141)
Compatibility tip adapters No
Special features Flexible fiber-optic cable, extra-small end sleeve
