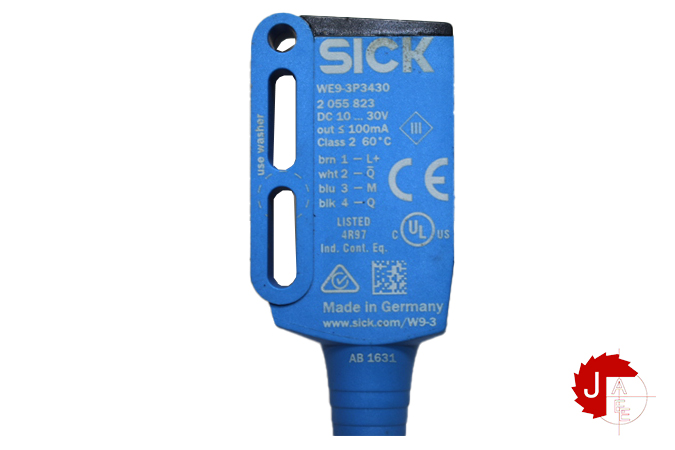

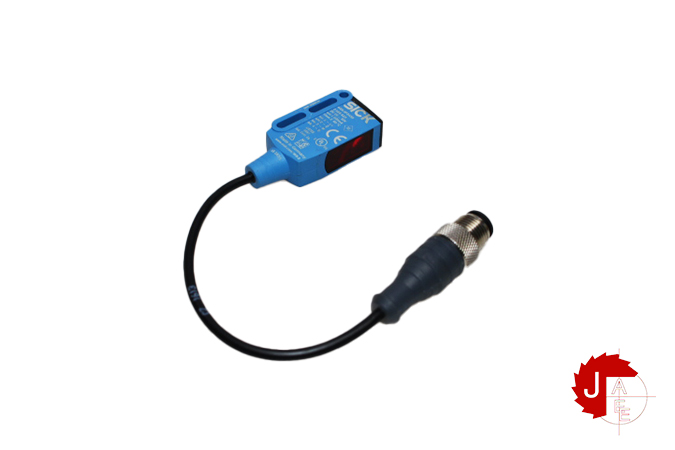

SICK WE9-3P3430 Small photoelectric sensors 2055823

Manufacturer: SICK
Type: Small photoelectric sensors
Model: WE9-3P3430
Part No: 2055823

Functional principle Through-beam photoelectric sensor
Dimensions (W x H x D) 12.2 mm x 50 mm x 23.6 mm
Housing design (light emission) Rectangular
Mounting hole M3
Sensing range max. 0 m … 10 m
Sensing range 0 m … 7 m
Type of light Visible red light
Light source Pin Point LED
Light spot size (distance) Ø 25 mm (1 m)
Wave length 650 nm
Adjustment None

Supply voltage 10 V DC … 30 V DC
Ripple < 5 Vpp
Current consumption 30 mA
Switching output PNP
Output function Complementary
