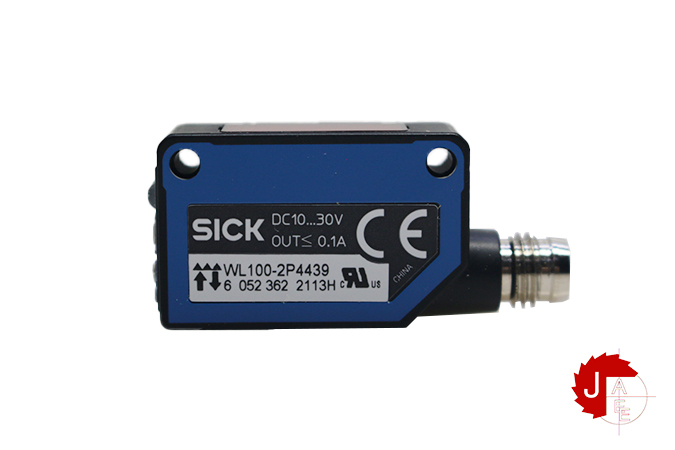

SICK WL100-2P4439 Miniature photoelectric sensors 6052362

Manufacturer: SICK
Type: Miniature photoelectric sensors
Model: WL100-2P4439
Part No: 6052362

Functional principle Photoelectric retro-reflective sensor
Functional principle detail Dual lens
Dimensions (W x H x D) 11 mm x 31 mm x 20 mm
Housing design (light emission) Rectangular
Sensing range max. 0.01 m … 7.2 m
Sensing range 0.01 m … 5.5 m
Type of light Visible red light
Light source LED
Light spot size (distance) Ø 280 mm (4 m)
Wave length 632 nm

Adjustment Potentiometer (Sensitivity)

Supply voltage 10 V DC … 30 V DC
Ripple ± 10 %
Current consumption 30 mA
Switching output PNP
