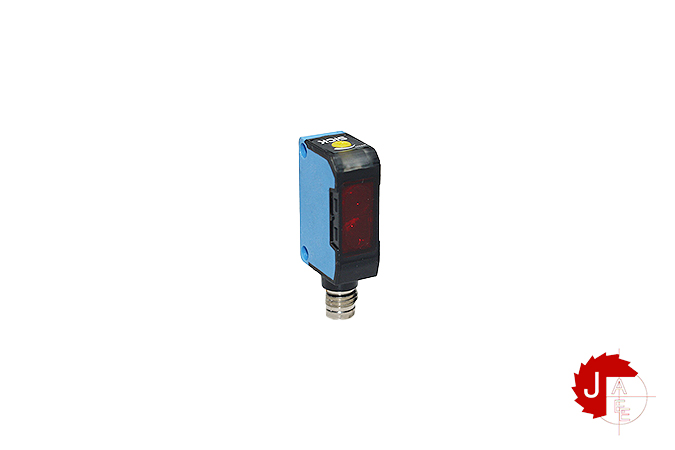

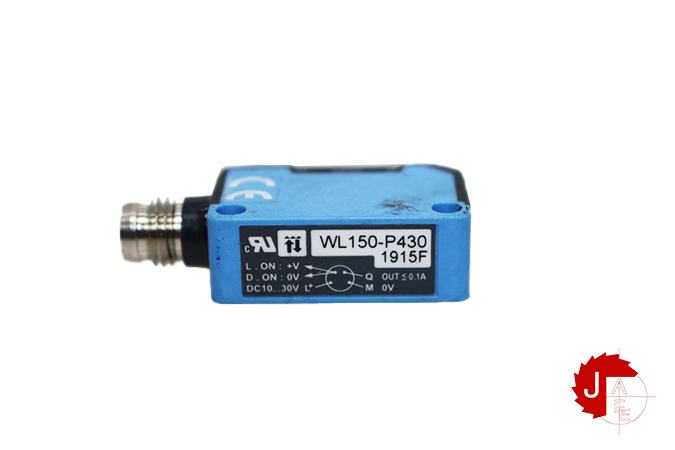

SICK WL150-P430 Miniature photoelectric sensors 6011038

Manufacturer: SICK
Type: Miniature photoelectric sensors
Model:  WL150-P430
Part No: 6011038

Functional principle Photoelectric retro-reflective sensor
Functional principle detail Dual lens
Dimensions (W x H x D) 10 mm x 28 mm x 17.5 mm
Housing design (light emission) Rectangular
Sensing range max. 0 m … 2.4 m
Sensing range 0.01 m … 2 m
Focus Approx. 6°
Type of light Visible red light
Light source LED
Angle of dispersion Approx. 6°
Adjustment Potentiometer, 270°

Supply voltage 10 V DC … 30 V DC
Ripple ± 10 %
Current consumption 20 mA
Switching output PNP
