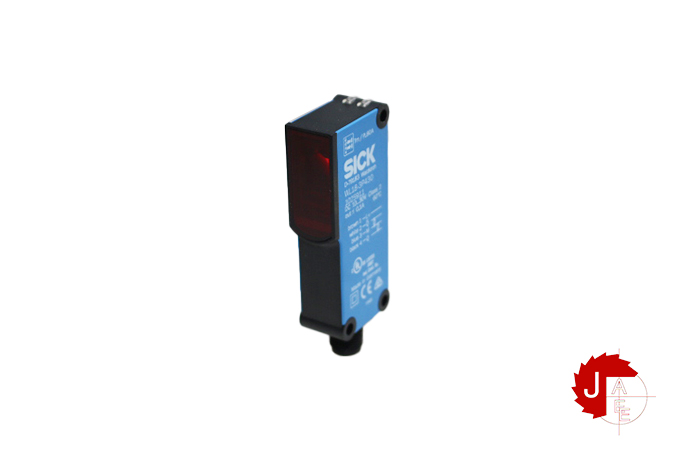

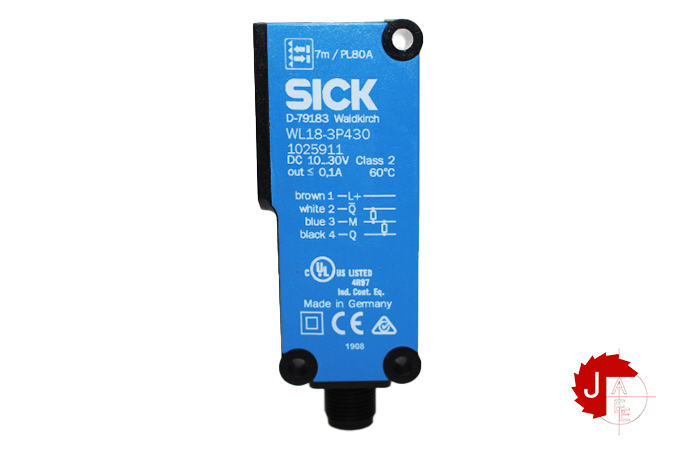

SICK WL18-3P430 Photoelectric retro-reflective sensor 1025911

Manufacturer: SICK
Type: Photoelectric retro-reflective sensor
Model: WL18-3P430
Part No: 1025911

Functional principle Photoelectric retro-reflective sensor

Functional principle detail Autocollimation
Dimensions (W x H x D) 17.6 mm x 75.5 mm x 33.5 mm
Housing design (light emission) Rectangular
Sensing range max. 0 m … 7 m
Sensing range 0 m … 5 m
Focus1.8°
Type of light Visible red light

Light source LED
Light spot size (distance)Ø 40 mm (2 m)
Angle of dispersion1.8°
Wave length 645 nm
Adjustment Potentiometer, 1 turn

Supply voltage 10 V DC … 30 V DC
Ripple< 5 Vpp
Current consumption40 mA
Switching output PNP
Output function Complementary
