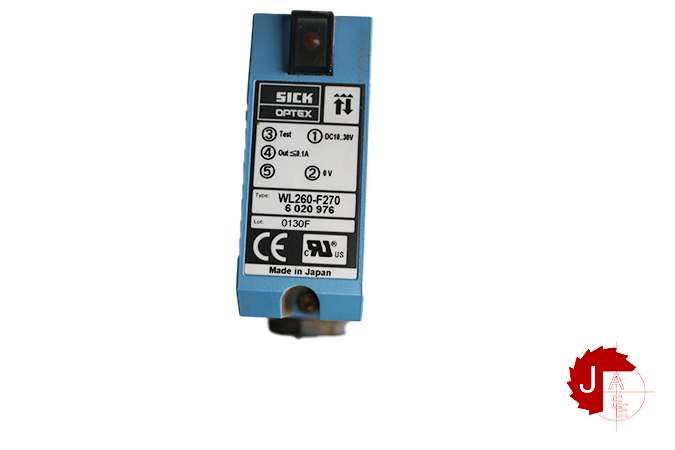

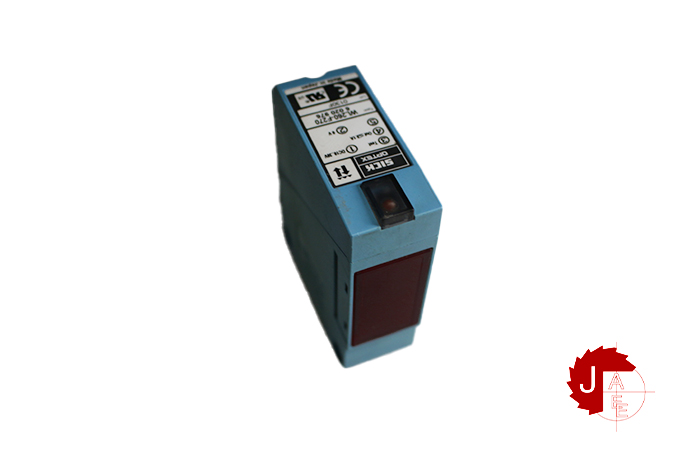

Sick WL260-F270 Compact photoelectric sensors 6020976

Sick WL45-R260

Manufacturer :Sick

MODEL : WL260-F270

Type : Compact photoelectric sensors

Part no : 6020976

Device type Photoelectric sensors
Sensor/ detection principle Photoelectric retro-reflective sensor, Dual lens
Dimensions (W x H x D) 25 mm x 78 mm x 63 mm
Housing design (light emission) Rectangular
Sensing range max. 0.01 m … 14 m 1)
Sensing range 0.01 m … 9.5 m 2)
0.01 m … 11.5 m 1)
Focus Approx. 1.7°
Type of light Visible red light
Light source LED 3)
Light spot size (distance) Ø 240 mm (8 m)
Angle of dispersion Approx. 1.7°
Adjustment Potentiometer, 270°
