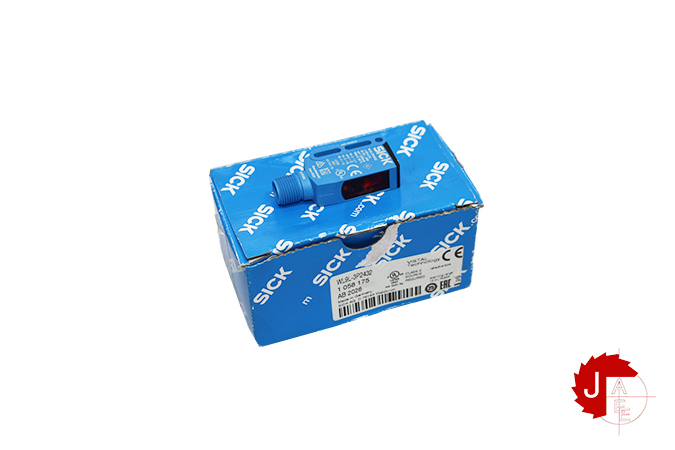

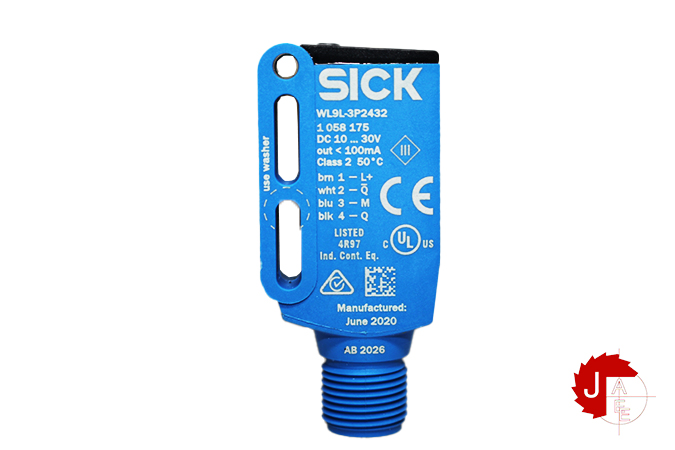

SICK WL9L-3P2432 Small photoelectric sensors 1058175

Manufacturer: SICK
Type: Small photoelectric sensors
Model: WL9L-3P2432
Part No: 1058175

Functional principle Photoelectric retro-reflective sensor
Functional principle detail Autocollimation
Dimensions (W x H x D) 12.2 mm x 52.2 mm x 23.6 mm
Housing design (light emission) Rectangular
Mounting hole M3
Sensing range max. 0 m … 12 m
Sensing range 0 m … 8 m
Type of light Visible red light
Light source Laser
Light spot size (distance) Ø 1 mm (500 mm)
Wave length 650 nm
Laser class 1 (IEC 60825-1 / CDRH 21 CFR 1040.10 & 1040.11)
Adjustment Single teach-in button
Special applications Detecting small objects

Supply voltage 10 V DC … 30 V DC
Ripple < 5 Vpp
Current consumption 30 mA
Switching output PNP
