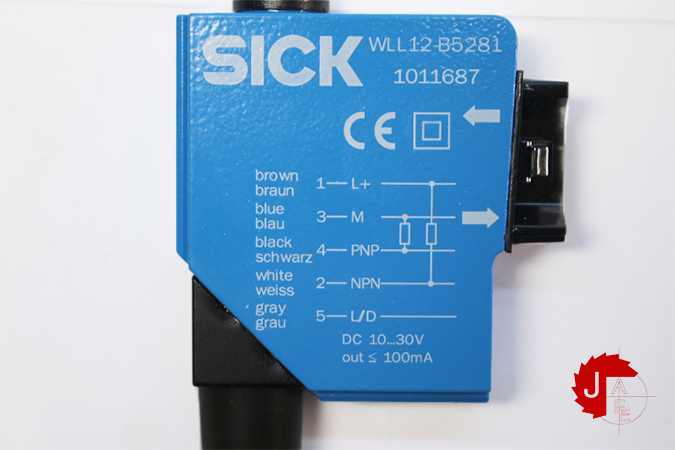

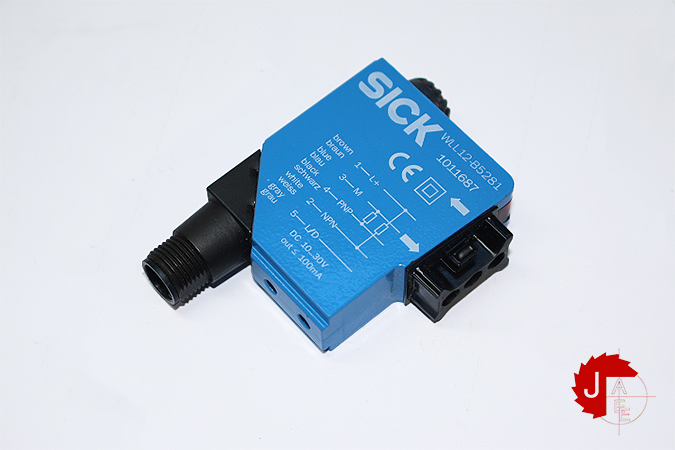

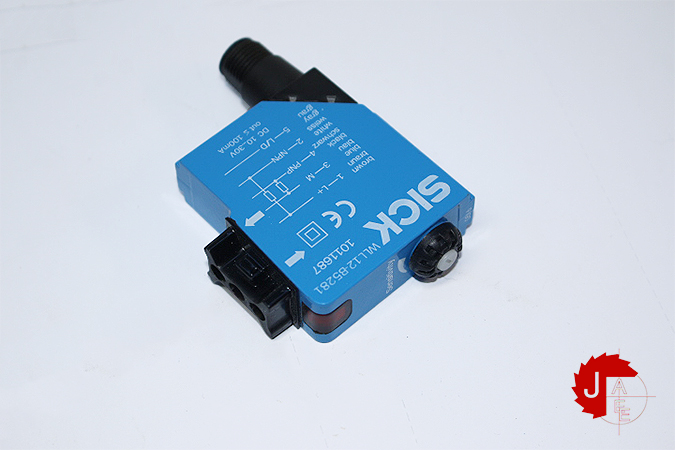

SICK WLL12-B5281 Photoelectric sensors 1011687

Manufacturer: SICK
Type: Photoelectric sensors
Model: WLL12-B5281
Part No: 1011687

Features

Dimensions (W x H x D) 15 mm x 49 mm x 53 mm
Housing design (light emission)
Rectangular Sensing range max. 0 mm … 280 mm
Sensing range 0 mm … 280 mm
Type of light Infrared light
Light source LED Adjustment Potentiometer

Mechanics/electronics

Supply voltage 10 V DC … 30 V DC
Ripple < 5 Vpp Current consumption 35 mA
Switching mode Light/dark switching
Response time ≤ 360 µs

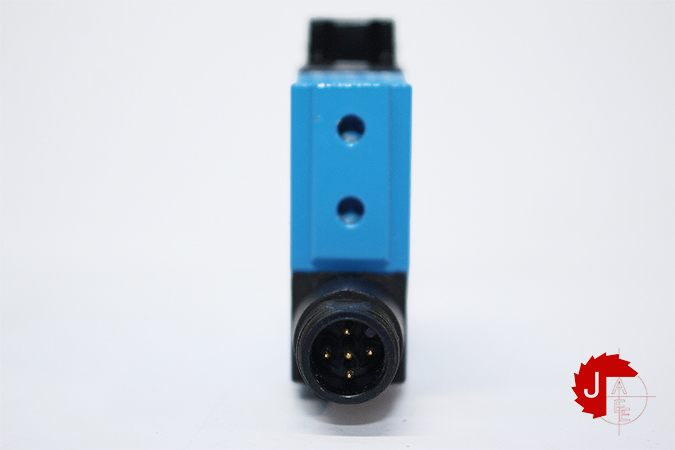

Connection type Male connector M12, 5-pin
