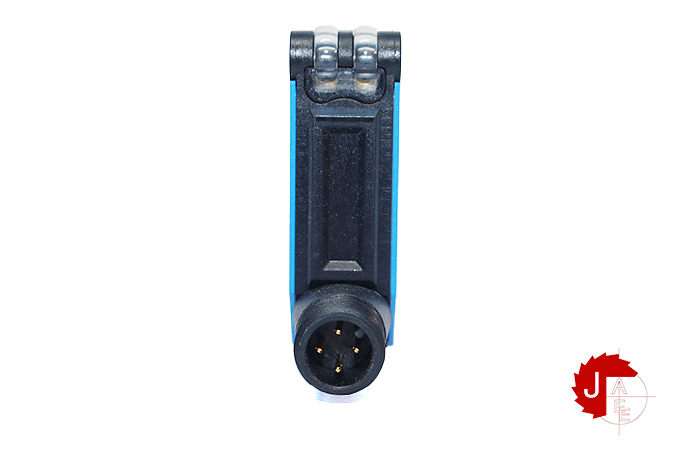

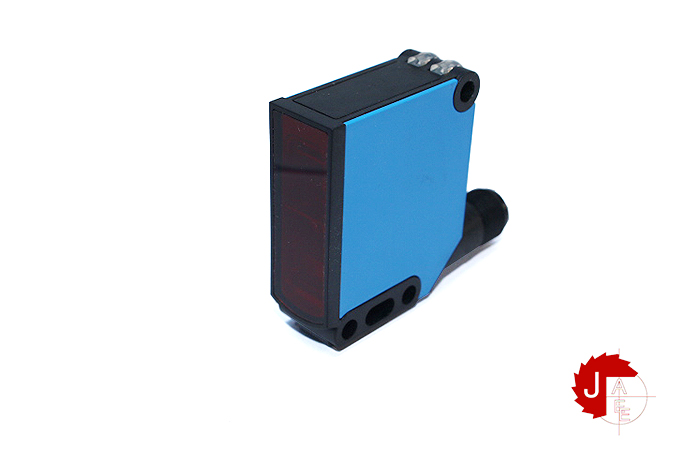

SICK WSE11-2P2430 Through-beam photoelectric sensor 1057571

SICK WSE11-2P2430 Through-beam photoelectric sensor 1057571

Manufacturer: SICK
Type: Through-beam photoelectric sensor
Model: WSE11-2P2430
Art No: 1057571

Functional principle Through-beam photoelectric sensor
Dimensions (W x H x D) 15.6 mm x 48.5 mm x 42 mm
Housing design (light emission) Rectangular
Sensing range max. 0 m … 20 m
Sensing range 0 m … 15 m
Focus Approx. 1.5°
Type of light Visible red light
Light source LED
Light spot size (distance) Ø 220 mm (15 m)
Angle of dispersion Approx. 1.5°
Wave length 633 nm
Adjustment None

Supply voltage UB 10 V DC … 30 V DC
Ripple < 5 Vpp
Power consumption, sender ≤ 25 mA
Power consumption, receiver ≤ 20 mA
Switching output PNP
Output function Complementary
Switching mode Light/dark switching
