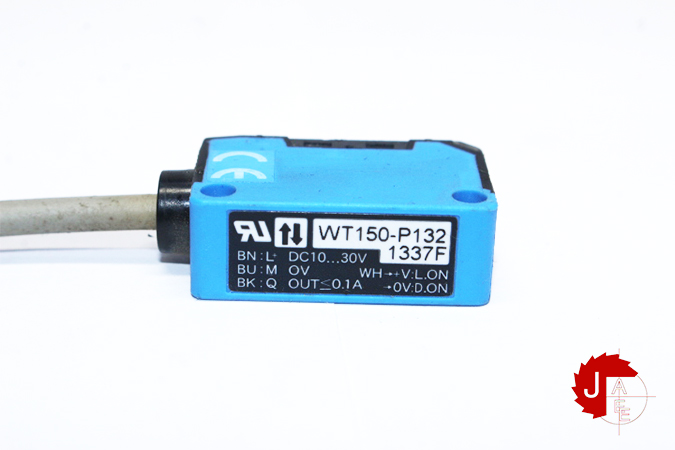

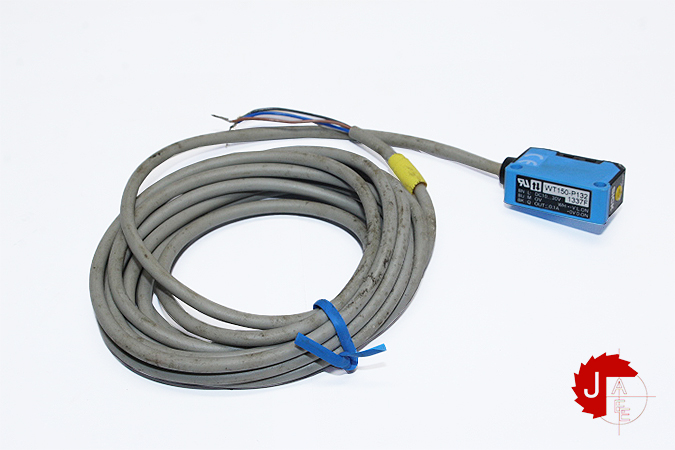

SICK WT150-P132 Miniature photoelectric sensors 6011042

Manufacturer: SICK
Type: Small photoelectric sensors
Model: WTB12-3P2431
Part No: 1041411

Functional principle Photoelectric proximity sensor
Functional principle detail Energetic
Dimensions (W x H x D) 10 mm x 28 mm x 17.5 mm
Housing design (light emission) Rectangular
Sensing range max. 10 mm … 250 mm
Sensing range 10 mm … 200 mm
Focus Approx. 6°
Type of light Visible red light
Light source LED
Angle of dispersion Approx. 6°
Adjustment Potentiometer, 270°

Supply voltage 10 V DC … 30 V DC
Ripple ± 10 %
Current consumption 20 mA
Switching output PNP

Condition
2 PCS NEW OUT OF BOX
1 PCS USED
