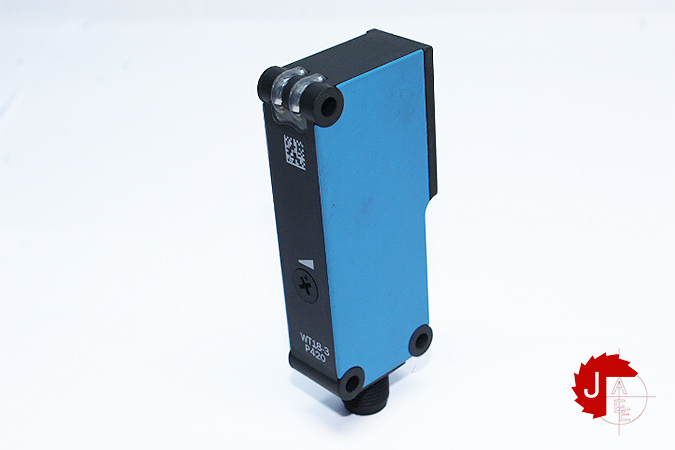

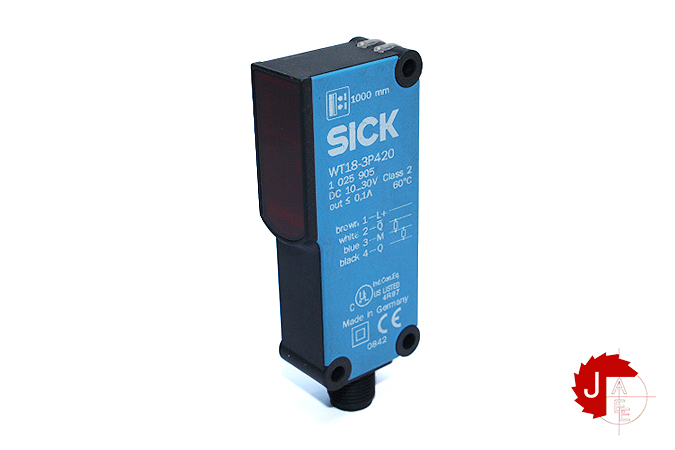

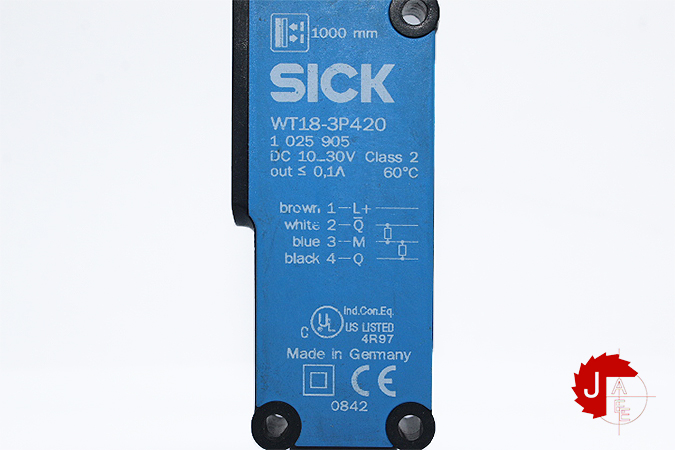

SICK WT18-3P420 Photoelectric proximity sensor 1025905

SICK WT18-3P420 Photoelectric proximity sensor 1025905

Manufacturer: SICK
Type: Photoelectric proximity sensor
Model: WT18-3P420
Art No: 1025905

Functional principle Photoelectric proximity sensor
Functional principle detail Background suppression
Dimensions (W x H x D) 17.6 mm x 75.5 mm x 33.5 mm
Housing design (light emission) Rectangular
Sensing range max. 10 mm … 1,000 mm
Sensing range 50 mm … 1,000 mm
Type of light Infrared light Light source LED
Light spot size (distance) Ø 30 mm (600 mm)
Wave length 870 nm
Adjustment Potentiometer, 4 turns

Supply voltage 10 V DC … 30 V DC
Ripple < 5 Vpp
Current consumption 55 mA
Switching output PNP
Output function Complementary
Switching mode Light/dark switching
Output current Imax. ≤ 100 mA
Response time < 700 µs
Switching frequency 700 Hz

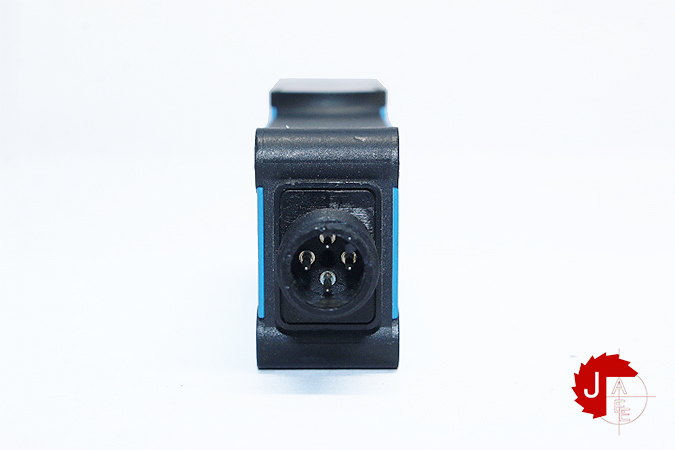

Connection type Male connector M12, 4-pin
