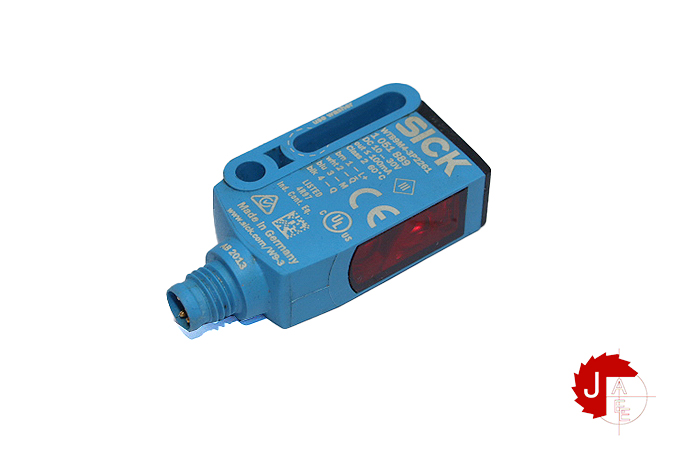

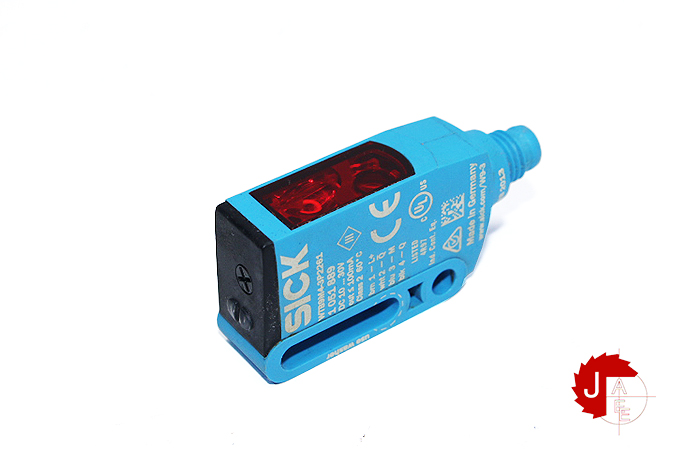

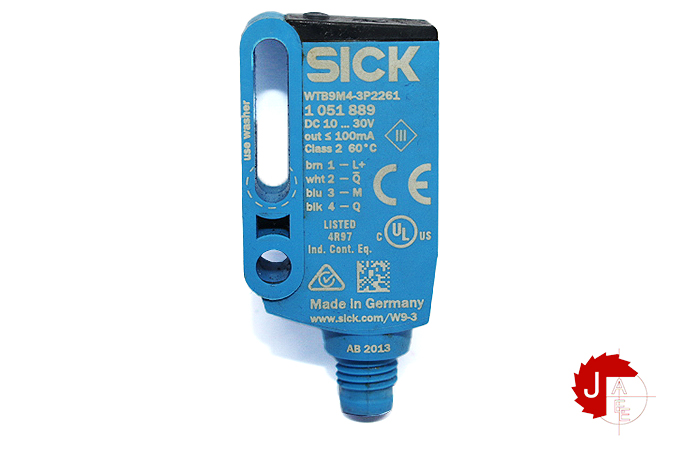

SICK WTB9M4-3P2261 Photoelectric sensors: W9 1051889

Manufacturer: SICK
Type: Photoelectric sensors: W9
Model: WTB9M4-3P2261
Part No: 1051889

Functional principle Photoelectric proximity sensor
Functional principle detail Background suppression
Dimensions (W x H x D) 12.2 mm x 49.8 mm x 23.6 mm
Housing design (light emission) Rectangular
Mounting hole M4
Sensing range max. 20 mm … 350 mm
Sensing range 20 mm … 200 mm
Type of light Visible red light
Light source PinPoint LED
Light spot size (distance) Ø 4.5 mm (75 mm)

Supply voltage 10 V DC … 30 V DC
Ripple < 5 Vpp
Current consumption 30 mA
Switching output PNP
Output function Complementary
Switching mode Light/dark switching
Output current Imax. ≤ 100 mA
Response time < 0.333 ms
Switching frequency 1,500 Hz
Connection type Male connector M8, 4-pin
