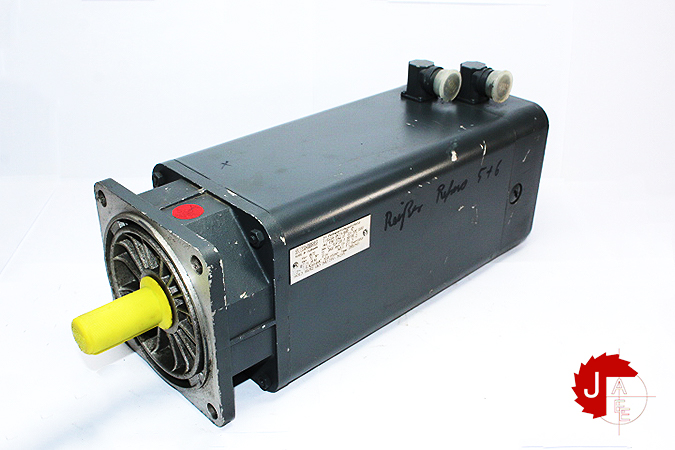

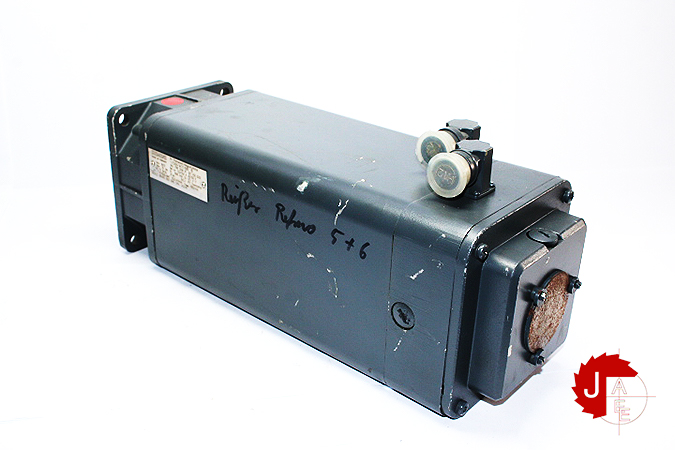

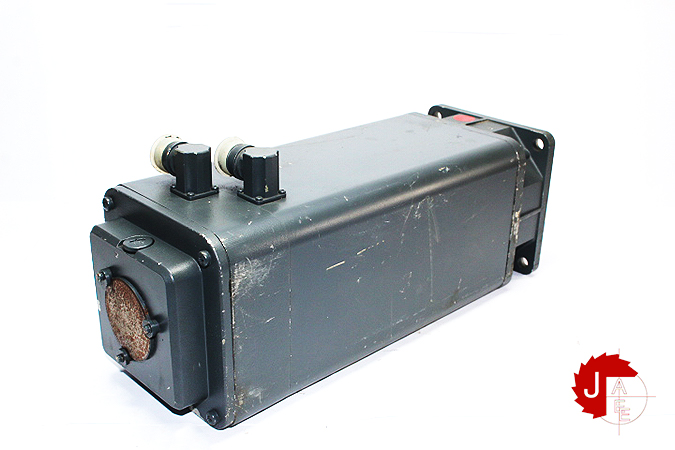

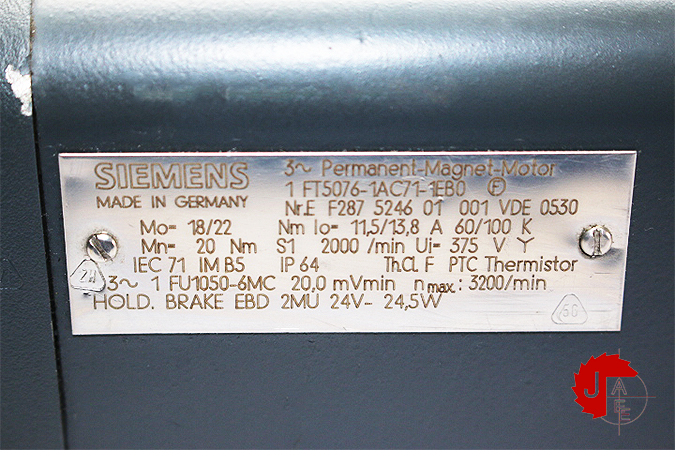

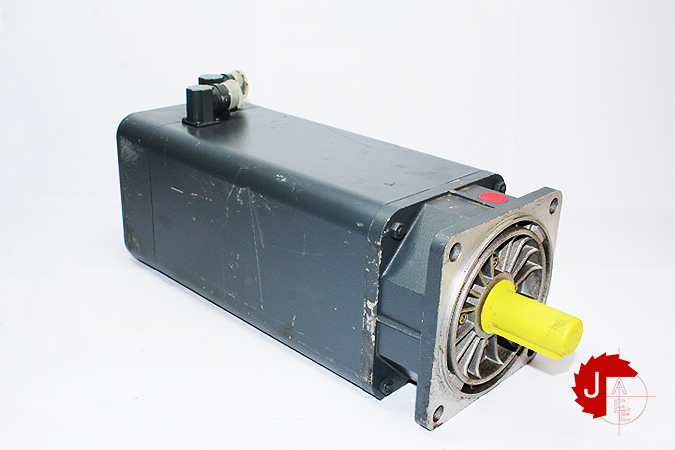

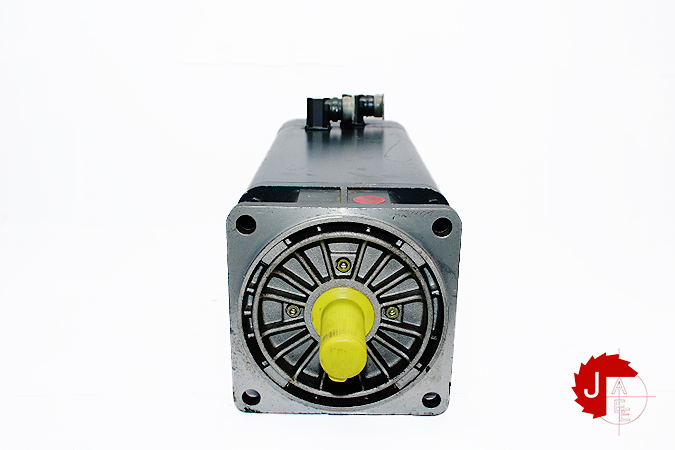

SIEMENS 1 FT5076-1AC71-1EB0 PERMANENT MAGNET MOTOR

Manufacturer: SIEMENS
Type: PERMANENT MAGNET MOTOR
Model: 1 FT5076-1AC71-1EB0

Power supply: 3 phase AC
Supply Voltage [V]: 375
Rated Torque [Nm]: 20
Stall Torque [Nm]: 18/22
Rated Current [A]: 11.5/13.8
Nominal Speed [rpm]: 2000
Maximum Speed[rpm]: 3200
Mounting Position: B5
Ambient Temperature [°C]: 60/100 K
Insulation Class: F
Protection Class [IP]: 64
