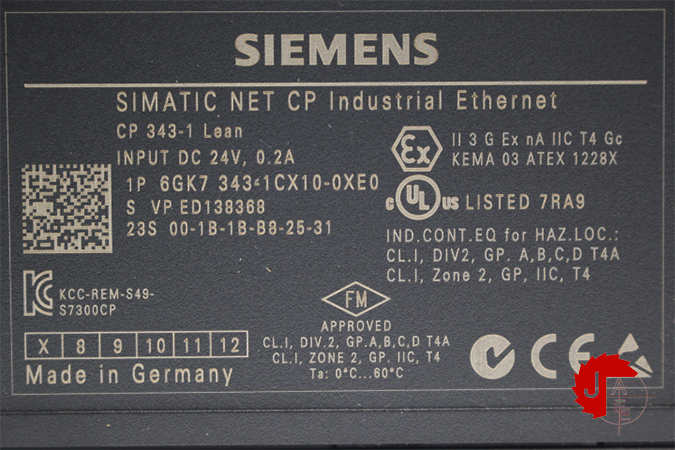

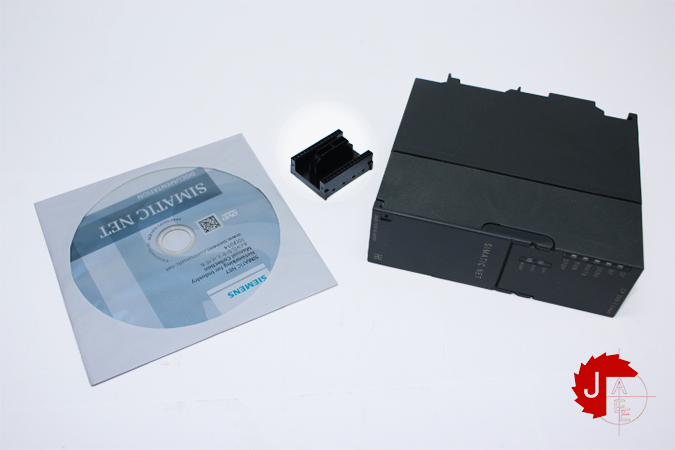

SIEMENS 6GK7343-1CX10-0XE0 Communications processor CP 343-1

Manufacturer: SIEMENS
Type: Communications processor CP 343-1

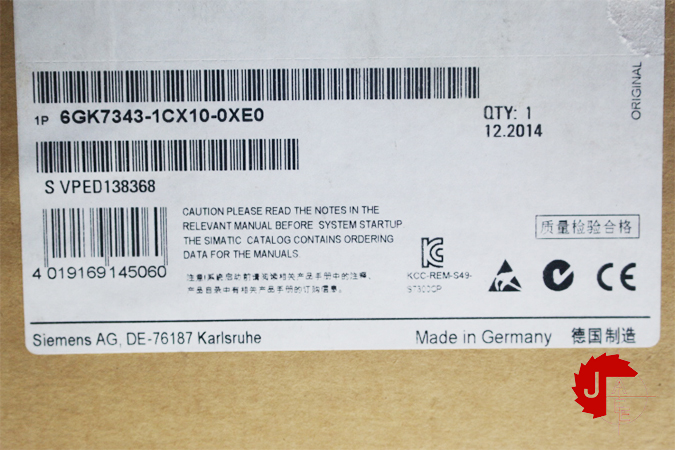

Model: 6GK7343-1CX10-0XE0

Communications processor CP 343-1 Lean for connection of SIMATIC S7-300 to
Industrial Ethernet via TCP/IP and UDP, Multicast, SEND/RECEIVE with and
without RFC1006, Fetch/ Write, S7 communication (server), PROFINET IO device
integrated 2-port switch ERTEC 200, Module replacement without PG, SNMP
diagnostics, initialization via LAN, 2x RJ45 connection for LAN with 10/100 Mbit/s

transfer rate
transfer rate
● at the 1st interface 10 … 100 Mbit/s
interfaces
number of interfaces / according to Industrial Ethernet 2
number of electrical connections
● at the 1st interface / according to Industrial Ethernet 2
● for power supply 1
type of electrical connection
● of Industrial Ethernet interface RJ45 port
● at the 1st interface / according to Industrial Ethernet RJ45 port
type of electrical connection
● for power supply 2-pole plugable terminal block
