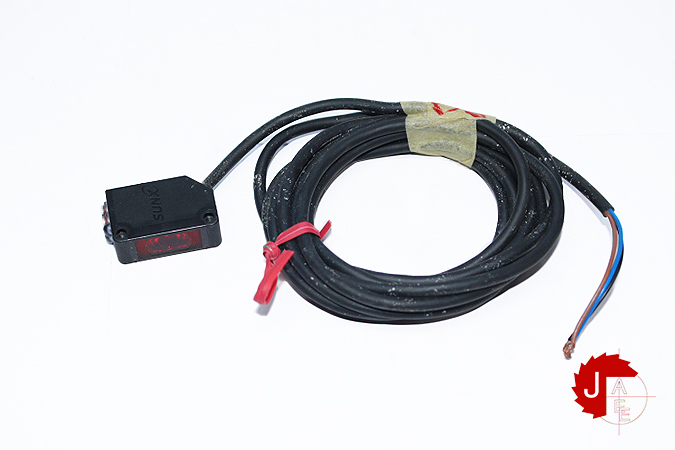

SUNX / Panasonic CX-411D-P Compact Photoelectric Thrubeam Sensor

SUNX / Panasonic CX-411D-P Compact Photoelectric Thrubeam Sensor

Manufacturer: SUNX / Panasonic
Type: Compact Photoelectric Thrubeam Sensor
Model: CX-411D-P

Series CX-400
Sensor Body Type Compact Rectangular Plastic
Sensor Body Feature H31 x W11 x D20, tough acrylic lens
Sensing Mode Thrubeam
Sensing Mode Details High-resistance to effects of coolants and oils
Sensor Features
1-turn Potentiometer adjustment, ø12mm minimum sensing opaque target, 0.5mm repeatability
Light Source Red LED
Supply Voltage Details 12 to 24VDC
Sensing Range 10 meter
Output PNP
Output Details 1 each PNP
Timer No
Output Mode Light-On/Dark-On selectable
Construction PBT enclosure, Acrylic lens
Temperature -25º to +55º C
IEC/Nema Rating Details IP67
Connection Detail Cable 2m
