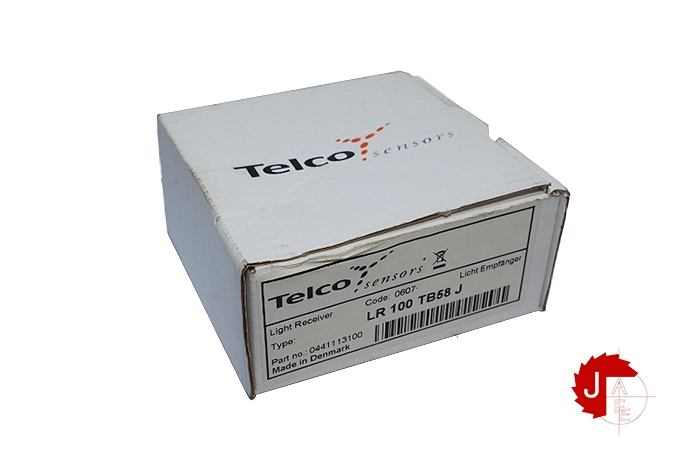

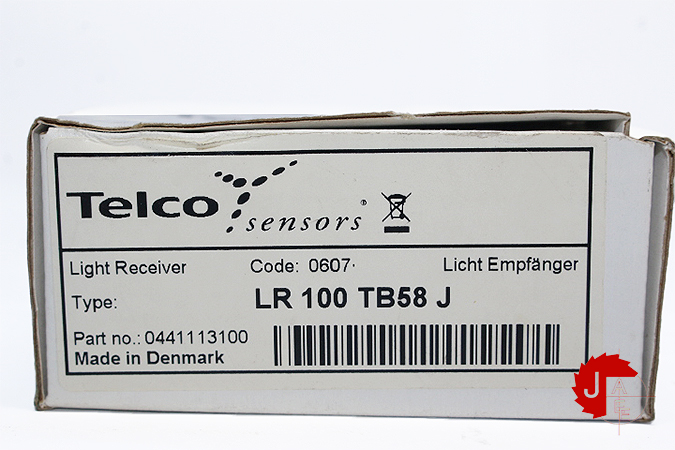

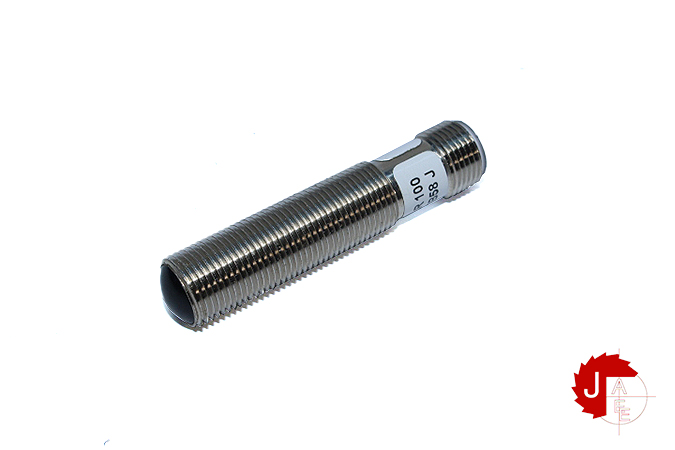

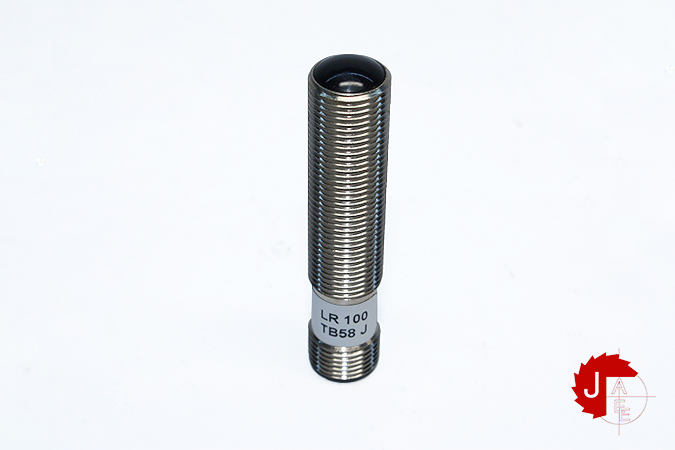

Telco LR 100 TB58 J Remote Sensors / Receiver

Telco LR 100 TB58 J Remote Sensors / Receiver

Manufacturer: Telco
Type: Remote Sensors / Receiver
Model: LR 100 TB58 J

Product Data
Function Receiver
Sensing Range Up to 18 m
Indicators None
Optical Angle +/- 7° (opening)
Housing M12 x 1
Housing Material Nickel Plated Brass

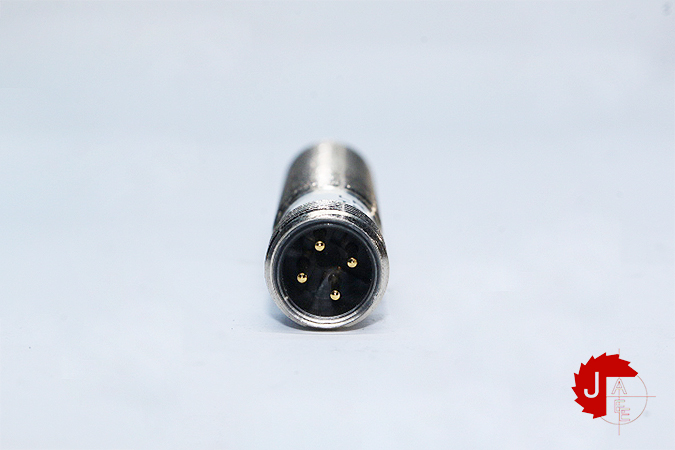

Connection 4 pin, M12 plug
Technical Data
Photo Transistor Silicon NPN
Housing Material, Front Lens Polycarbonate
Housing Material, Sensor Housing Nickel Plated Brass
Environmental Data
Vibration 10 – 55 Hz, 0,5 mm
Shock 30 g
Operation Temperature – 25 to +65 °C
Storage Temperature – 40 to +80 °C
Sealing Class IP 67
Light Immunity 20˚ > 80 000 lux
