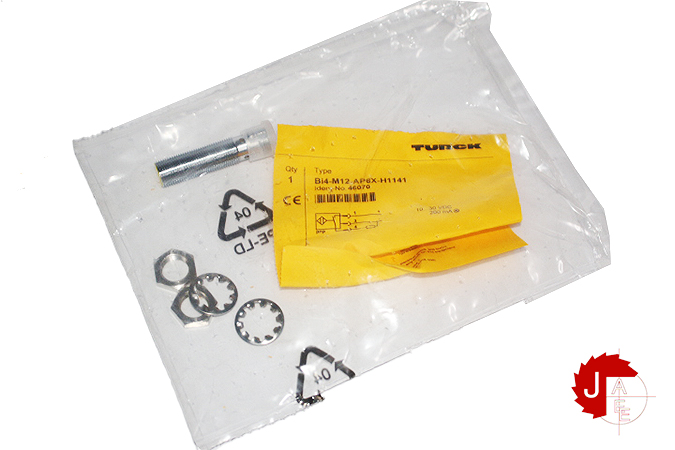

TURCK Bi4-M12-AP6X-H1141 Inductive Sensor – With Increased Switching Distance 46070

TURCK Bi4-M12-AP6X-H1141 Inductive Sensor – With Increased Switching Distance 46070

Manufacturer: TURCK
Type: Inductive Sensor – With Increased Switching Distance

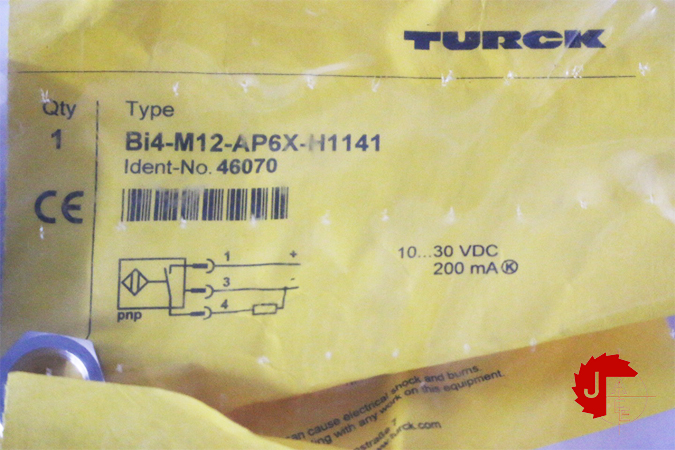

Model: Bi4-M12-AP6X-H1141
Part No: 46070

General data
Rated switching distance 4 mm
Mounting conditions Flush
Secured operating distance ≤ (0.81 × Sn) mm
Correction factors St37 = 1; Al = 0.3; stainless steel = 0.7; Ms = 0.4

Electrical data
Operating voltage 10…30  VDC
Residual ripple ≤ 10 % Uss
DC rated operational current ≤ 200 mA
No-load current 15  mA
Residual current ≤ 0.1 mA
Isolation test voltage ≤ 0.5 kV

Mechanical data

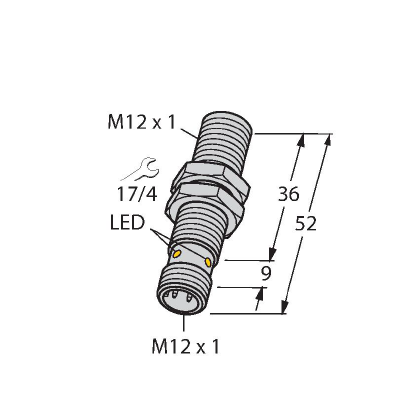

Design Threaded barrel, M12 x 1
Dimensions 52  mm
