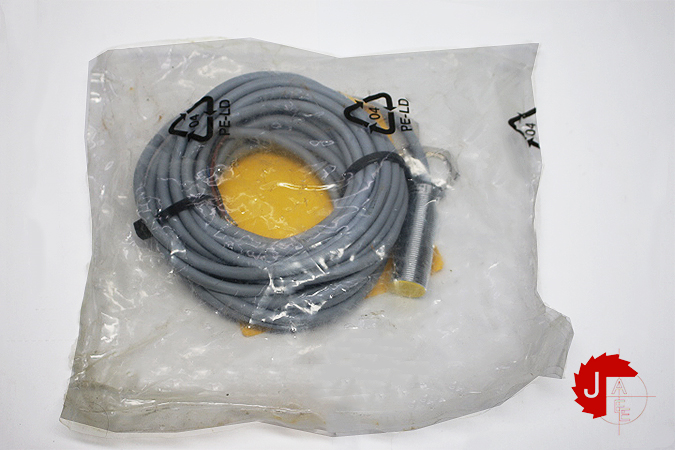

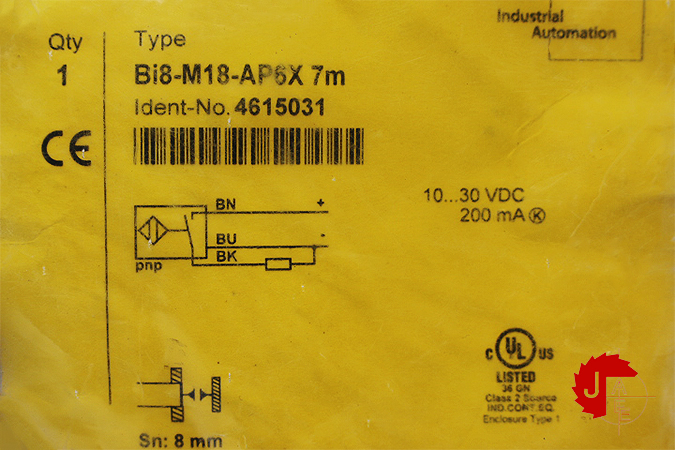

TURCK Bi8-M18-AP6X 7m Inductive Sensor

75.00 $

Availability: 1 in stock

SKU: 0998656 Category:

Only 1 item left.

Manufacturer: TURCK
Type: Inductive Sensor
Model: Bi8-M18-AP6X 7m

General data
Rated switching distance 8 mm
Mounting conditions Flush
Secured operating distance ≤ (0.81 × Sn) mm
Correction factors St37 = 1; Al = 0.3; stainless steel = 0.7; Ms = 0.4
Repeat accuracy ≤ 2 % of full scale
Temperature drift ≤ ±10 %
Hysteresis 3…15  %
Electrical data Operating voltage 10…30  VDC
Residual ripple ≤ 10 % Uss DC rated operational current ≤ 200 mA No-load current 15  mA
Residual current ≤ 0.1 mA
Isolation test voltage ≤ 0.5 kV
Short-circuit protection yes / Cyclic
Voltage drop at Ie ≤ 1.8 V Wire breakage/Reverse polarity protection yes / Complete
Output function 3-wire, NO contact, PNP
Switching frequency 0.5 kHz
Mechanical data
Design Threaded barrel, M18 x 1
Dimensions 54  mm
Housing material
Metal, CuZn, Chrome-plated

Manufacturer Turck
Model Bi8-M18-AP6X 7m Inductive Sensor
Condition New
