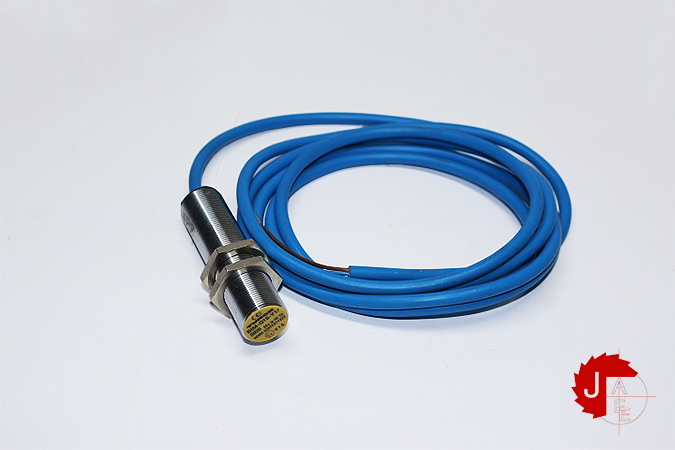

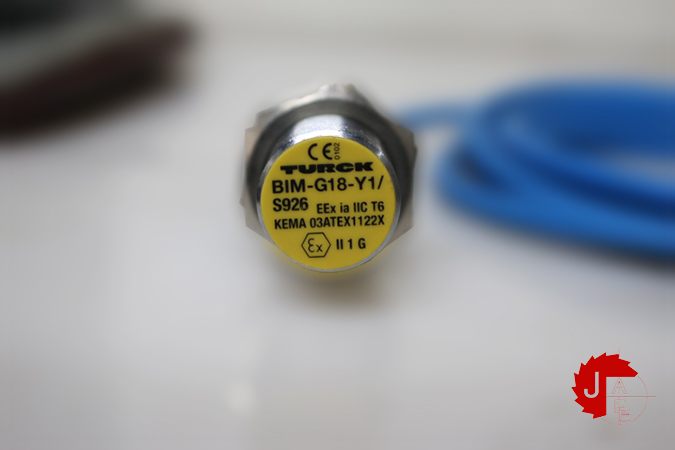

TURCK BIM-G18-Y1/S926 Inductive Sensor

TURCK BIM-G18-Y1/S926 Inductive Sensor

Manufacturer: TURCK
Type: Inductive Sensor
Model: BIM-G18-Y1/S926

Rated switching distance 5 mm
Mounting conditions Flush
Secured operating distance ≤ (0.81 × Sn) mm
Correction factors St37 = 1; Al = 0.3; stainless steel = 0.7; Ms = 0.4
Repeat accuracy ≤ 2 % of full scale
Temperature drift ≤ ±10 %
Hysteresis 1…10  %

Electrical data
Output function 2-wire, NAMUR
Switching frequency 1 kHz
Voltage Nom. 8.2 VDC
Non-actuated current consumption ≥ 2.1 mA
Actuated current consumption ≤ 1.2 mA

Mechanical data
Design Threaded barrel, M18 x 1
Dimensions 34  mm
Housing material Metal, CuZn, Chrome-plated
