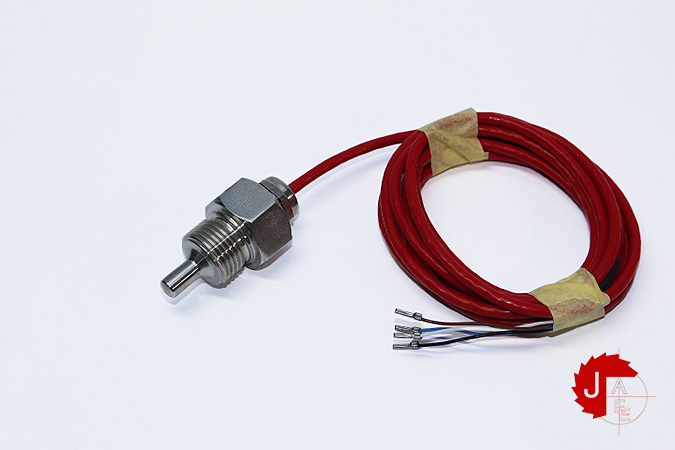

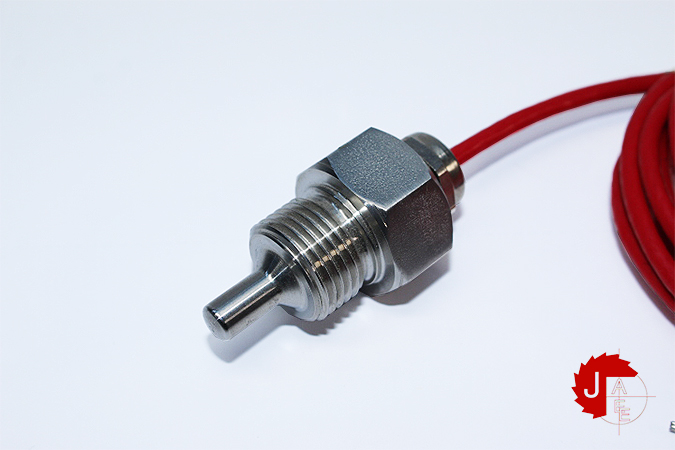

TURCK FCS-G1/2A4-NA/D100 Flow Monitoring

TURCK FCS-G1/2A4-NA/D100 Flow Monitoring

Manufacturer: TURCK
Type: Flow Monitoring
Model: FCS-G1/2A4-NA/D100

Mounting conditions Immersion sensor
Water Operating Range 1…150  cm/s
Oil Operating Range 3…300  cm/s
Stand-by time typ. 8 s (2…15 s)
Switch-on time typ. 2 s (1…13 s)
Switch-off time typ. 2 s (1…15 s)
Temperature jump, response time max. 12 s
Temperature gradient ≤ 250 K/min
Medium temperature 10…+120  °C

Electrical data
Protection class IP68
Mechanical data
.Design Immersion

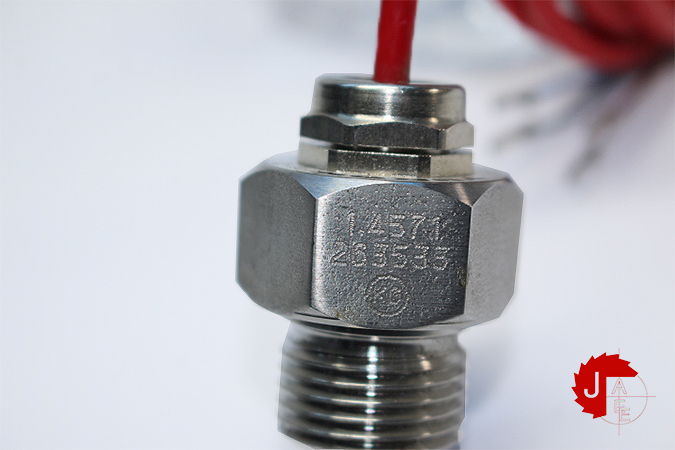

Housing material Stainless steel, 1.4571 (AISI 316Ti)
Sensor material Stainless steel, 1.4571 (AISI 316Ti)
Max. tightening torque of housing nut 30 Nm
Electrical connection Cable Cable length 2  m
Cable Jacket Material FEP Core cross-section 4 x 0.25  mm2
Pressure resistance 100  bar
Process connection G 1/2”
