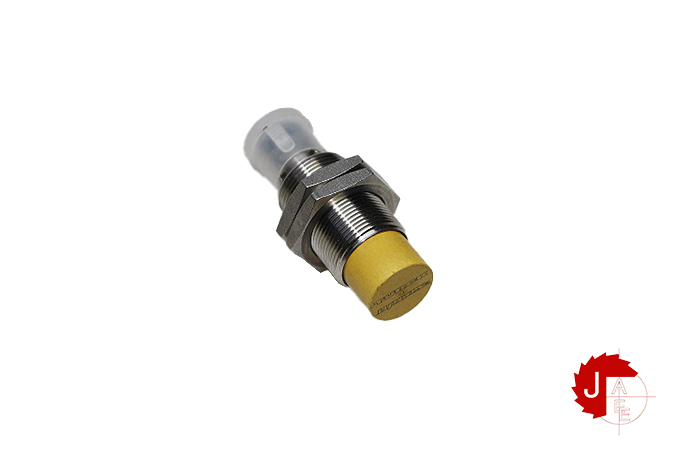

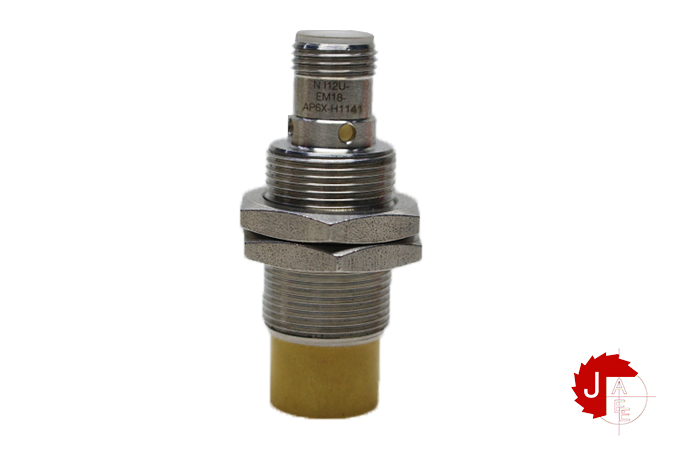

TURCK N112U-EM18-AP6X-H1141 Inductive Sensor

Manufacturer: TURCK
Type: Inductive Sensor
Model: N112U-EM18-AP6X-H1141

Rated switching distance 12 mm
Mounting conditions Non-flush, partially embeddable
Secured operating distance ≤ (0.81 × Sn) mm
Repeat accuracy ≤ 2 % of full scale
Temperature drift ≤ ±10 %
≤ ± 20 %, ≤ ‐25 °C v ≥ +70 °C
Hysteresis 3…15 %

Operating voltage 10…30 VDC
Residual ripple ≤ 10 % Uss
DC rated operational current ≤ 200 mA
No-load current 25 mA
Residual current ≤ 0.1 mA
Isolation test voltage ≤ 0.5 kV
Short-circuit protection yes / Cyclic
Voltage drop at Ie ≤ 1.8 V
Wire breakage/Reverse polarity protection
yes / Complete
Output function 3-wire, NO contact, PNP
DC field stability 300 mT
AC field stability 300 mTSS
Insulation class ÷
Switching frequency 1 kHz
