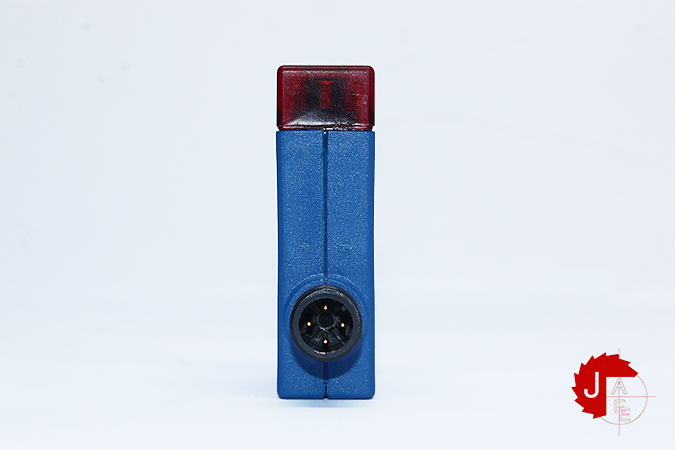

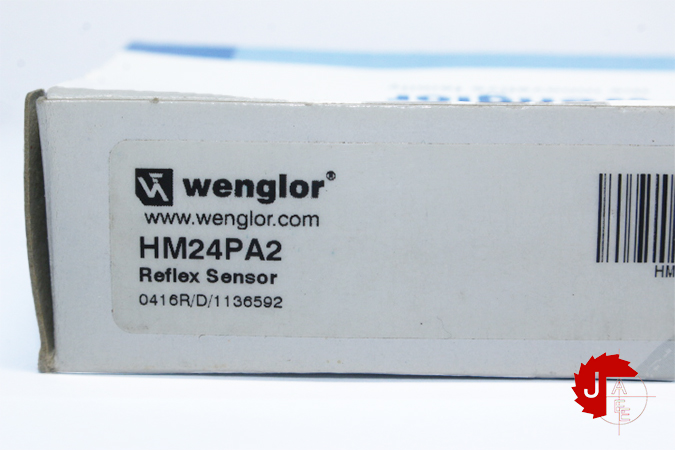

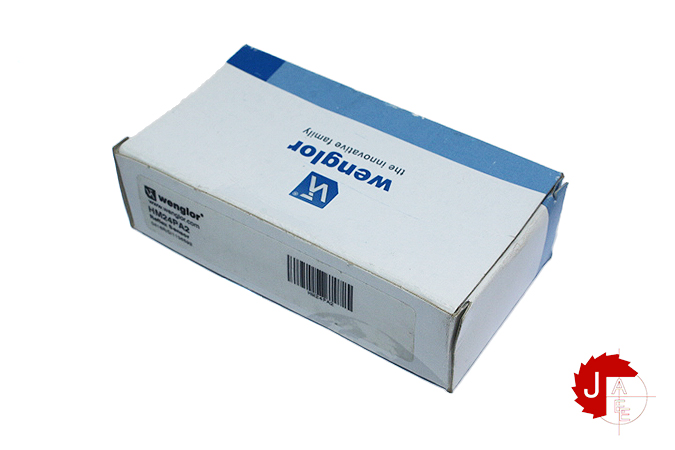

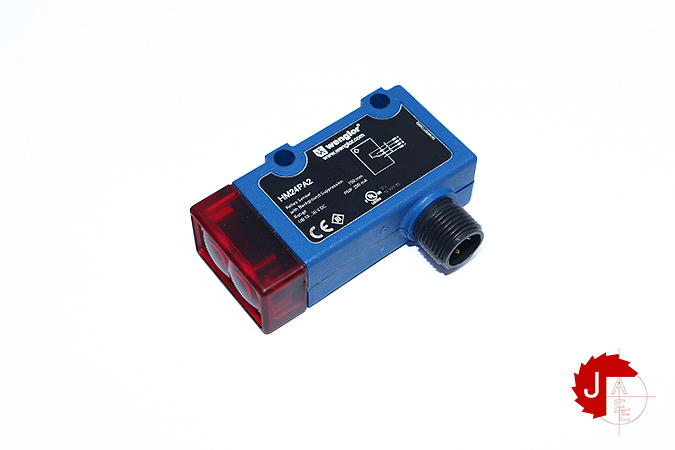

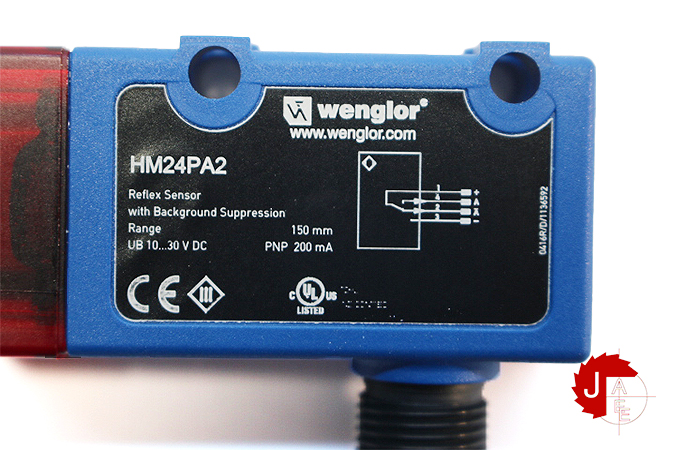

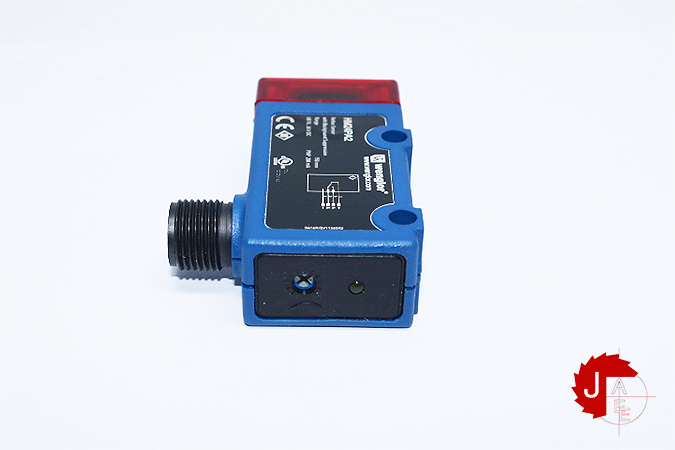

Wenglor HM24PA2 Reflex Sensor

Wenglor HM24PA2 Reflex Sensor

Manufacturer: Wenglor
Type: Reflex Sensor
Model: HM24PA2

Range 150 mm
Setting Range 40 … 150 mm
Light Source Red Light
Supply Voltage 10 … 30 V DC
Current Consumption (Ub = 24 V) < 30 mA
Switching Frequency 900 Hz
Response Time 555 µs
Temperature Drift < 5 %
Temperature Range -25 … 60 °C
Switching Output Voltage Drop < 2.5 V
PNP Switching Output/Switching Current 200 mA
Short Circuit Protection yes
Reverse Polarity Protection yes
Overload Protection yes
Protection Class III
Full Encapsulation yes
Degree of Protection IP67
Connection M12 × 1; 4-pin
PNP NC, PNP NO yes
