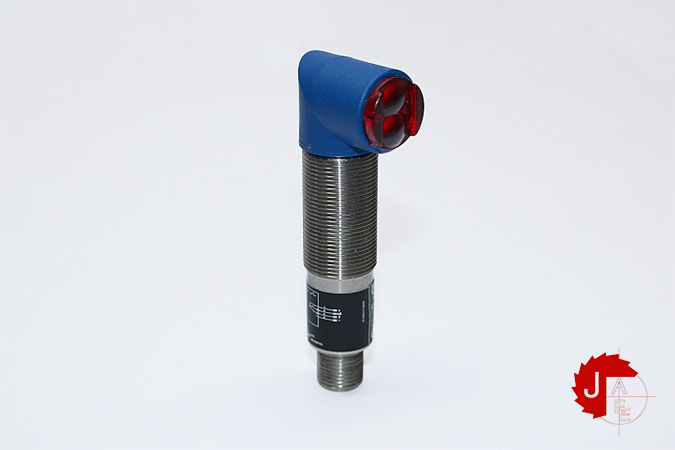

WENGLOR LW86PCV3 Retro-Reflex Sensor Universal

Manufacturer: WENGLOR
Type: Retro-Reflex Sensor Universal
Model: LW86PCV3

Range 6,000 mm
Reference Reflector/Reflector Foil RQ100BA
Switching Hysteresis < 15 %
Light Source Red Light
Polarization Filter yes
Service Life (T = +25 °C) 100,000 h
Max. Ambient Light 10,000 Lux
Opening Angle 5 °
Two-Lens Optic yes

Supply Voltage 10 … 30 V DC
Current Consumption (Ub = 24 V) < 40 mA
Switching Frequency 1 kHz
Response Time 500 µs

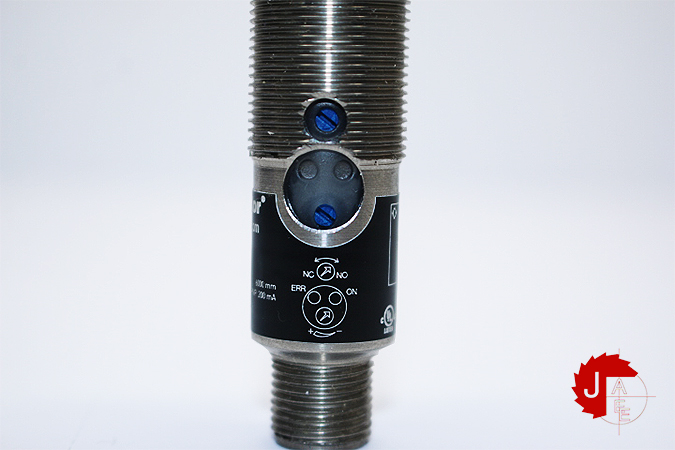

Setting Method Potentiometer
Housing Material Stainless Steel
Full Encapsulation yes
Degree of Protection IP67
Connection M12 × 1; 4-pin

Contamination Output  PNP NO
Adjustable parameters Circuit NC / NC/NO / NO
