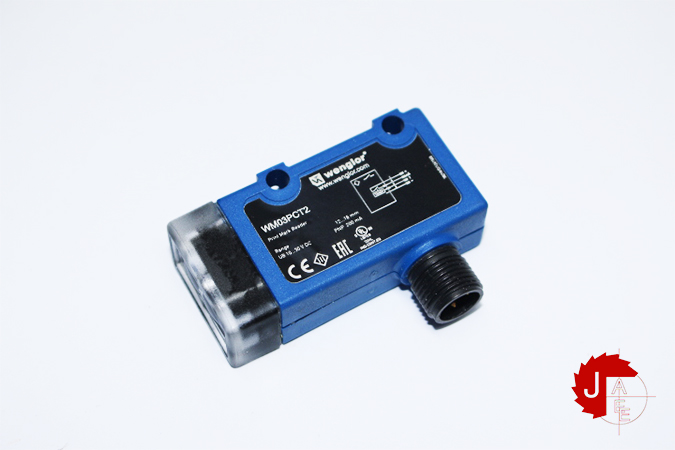

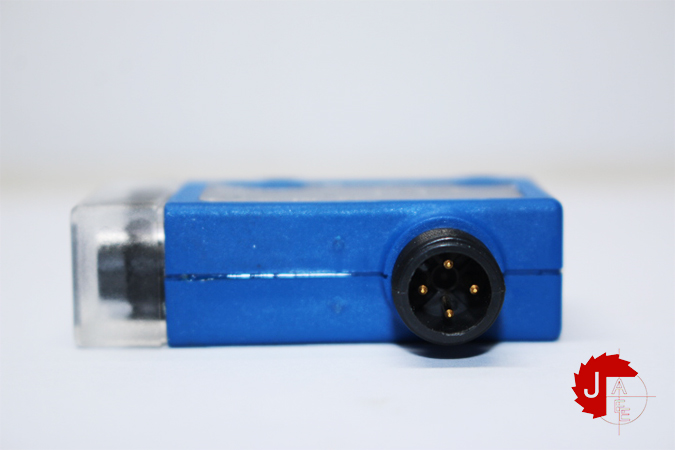

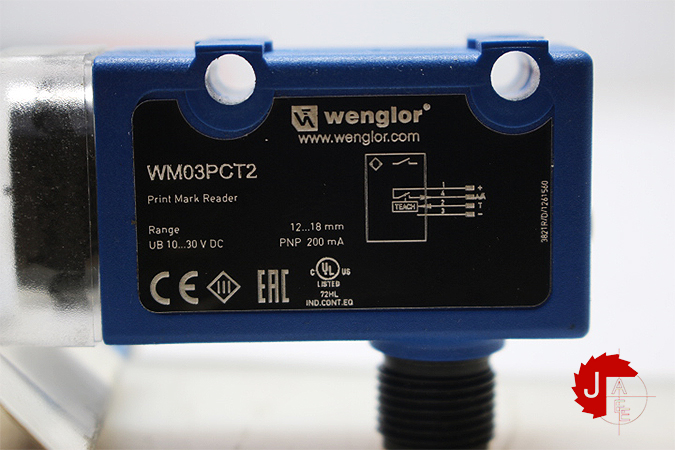

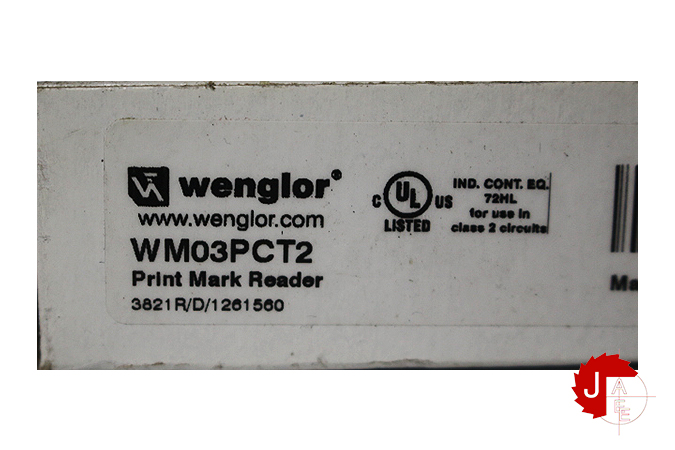

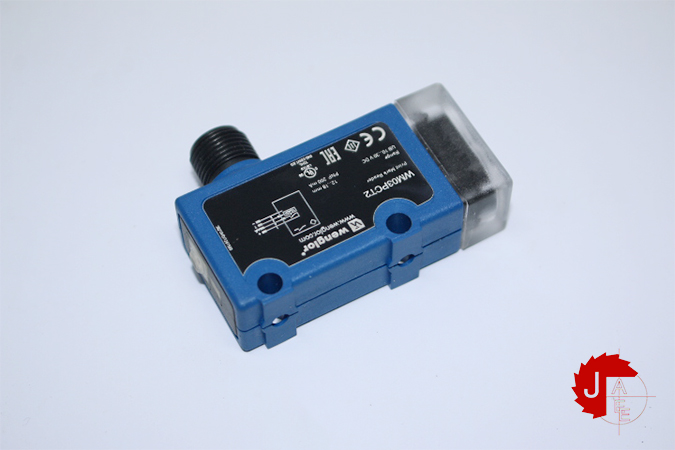

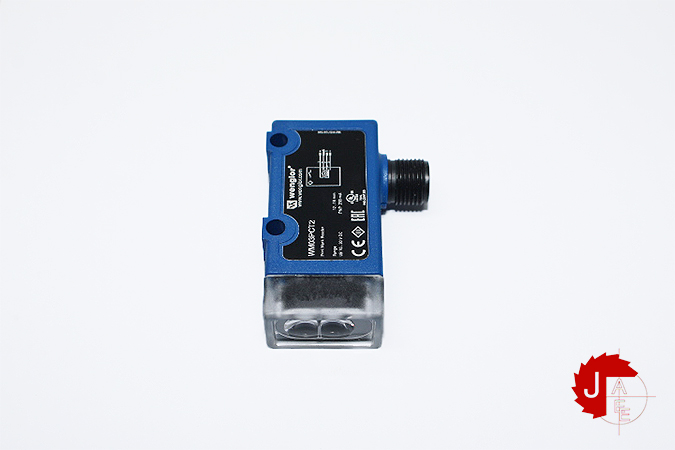

Wenglor WM03PCT2 Print Mark Reader

Wenglor WM03PCT2 Print Mark Reader

Manufacturer: Wenglor
Type: Print Mark Reader
Model: WM03PCT2

Optical Data
Working Range 12 … 18 mm
Working Distance 15 mm
Resolution (Gray Scale) 20
Switching Hysteresis < 2 %
Light Source White Light
Wavelength 400 … 700 nm
Service Life (T = +25 °C) 100,000 h
Max. Ambient Light 10,000 Lux
Light Spot Diameter 1.5 × 2.5 mm

Electrical Data
Supply Voltage 10 … 30 V DC
Current Consumption (Ub = 24 V) < 30 mA
Switching Frequency 5 kHz
Response Time 100 µs
Off-Delay 20 ms
Off-Delay (RS-232) 0 … 2 s

Adjustable parameters Circuit NC NC/NO NO
