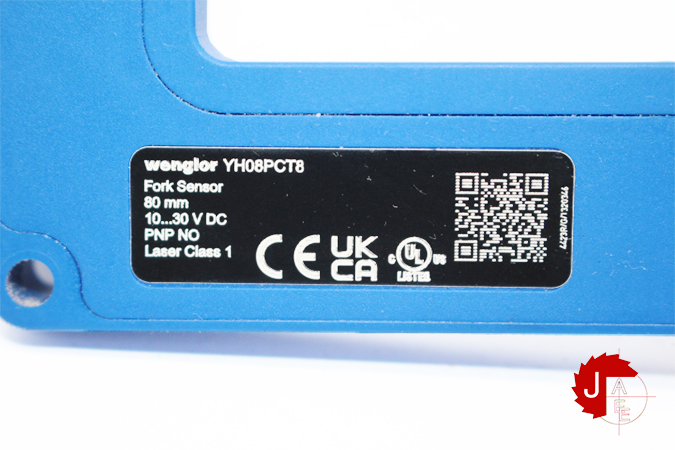

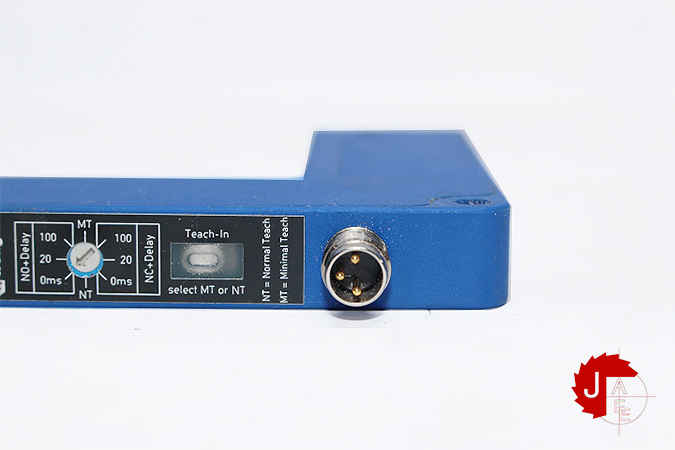

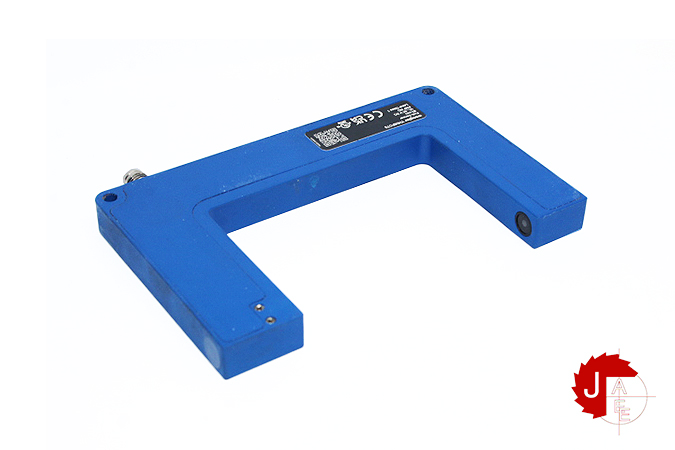

Wenglor YH08PCT8 Fork Sensor

SKU: 01000409 Category:

Only 2 items left.

Add to Quote

Wenglor YH08PCT8 Fork Sensor

Manufacturer: Wenglor
Type: Fork Sensor
Model: YH08PCT8

Optical Data
Fork Width 80 mm
Smallest Recognizable Part 40 µm
Smallest Detectable Gap 50 µm
Switching Hysteresis < 20 µm
Light Source Laser (red)
Wavelength 655 nm

Electrical Data
Supply Voltage 10 … 30 V DC
Current Consumption (Ub = 24 V) < 50 mA
Switching Frequency 10 kHz
Response Time 50 µs
Off-Delay 0 … 100 ms
