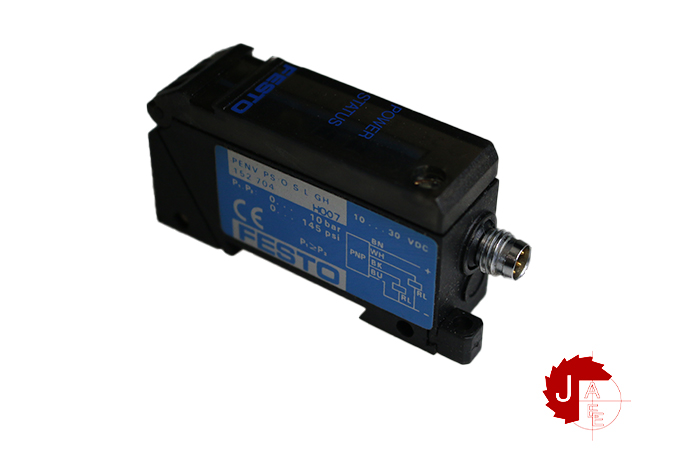

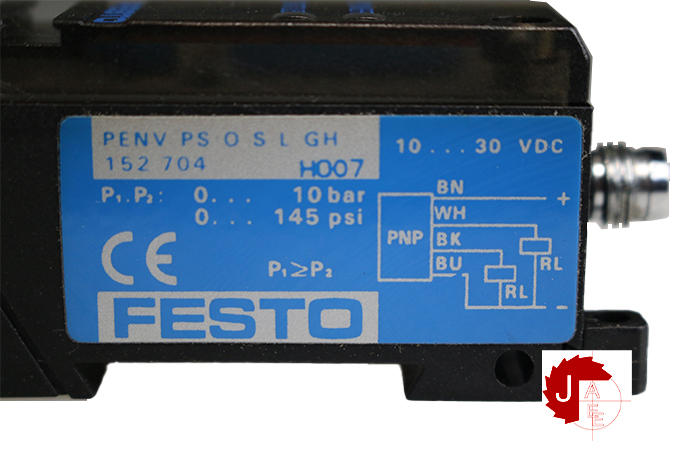

FESTO  PENV-PS/O-S-L-GH 152704  Pressure Switch

Pressure Switch

• CertificationRCM compliance mark c UL us – Recognized (OL)
• CE marking (see declaration of conformity)As per EU EMC directive
• UKCA marking (see declaration of conformity)To UK instructions for EMC To UK RoHS instructions
• Note on materialsRoHS-compliant
• Measured variableDifferential pressure
• Method of measurementPiezoresistive pressure sensor with display
• Pressure measuring range initial value0 bar
• Pressure measuring range end value10 bar
• Operating mediumCompressed air as per ISO 8573-1:2010 [7:4:4]
• Information on operating and pilot mediaOperation with oil lubrication possible
• Temperature of medium0 °C … 50 °C
• Ambient temperature0 °C … 50 °C
• Accuracy in ± % FS2 %FS
• Switching output2xPNP
• Switching functionFreely programmable
• Switching element functionSwitchable
• Reproducibility of switching value0.3 %
• Max. output current100 mA
• Short-circuit protectionPulsed
• DC operating voltage range15 V … 30 V
• Reverse polarity protectionfor all electrical connections
• Electrical connection 1, connection typePlug
• Electrical connection 1, connection technologyM8x1 A-coded as per EN 61076-2-104
• Electrical connection 1, number of pins/wires4
• Electrical connection 1, type of mountingScrew-type lock
• Electrical connection for input 1, connection pattern00991171
• Type of mountingWith through-hole With H-rail
• Mounting positionAny
• Pneumatic connectionQS-4
• Product weight37 g
• Housing materialPA-reinforced PC
• Display typeIlluminated LCD
• Switching status indicationLCD yellow
• Setting optionsTeach-in
• Protection against tamperingPIN code
• Setting range threshold value0 % … 100 %
• Setting range hysteresis0 % … 90 %
• Degree of protectionIP65
• Corrosion resistance class (CRC)2 – Moderate corrosion stress
• LABS (PWIS) conformityVDMA24364-B1/B2-L
