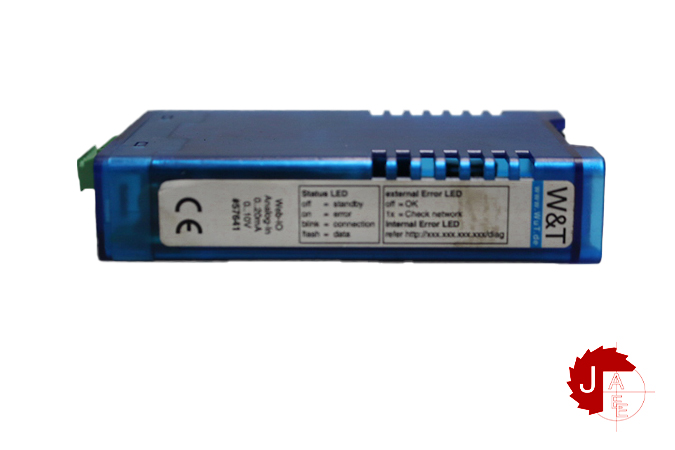

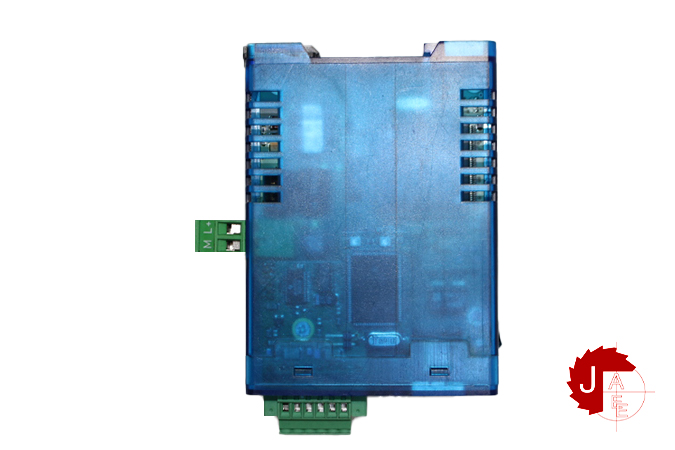

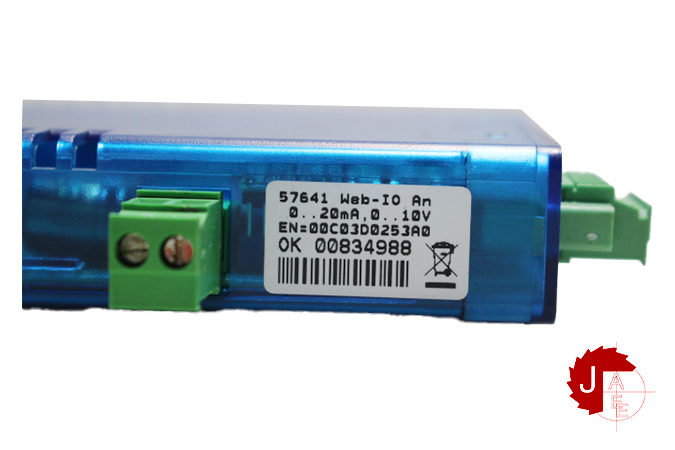

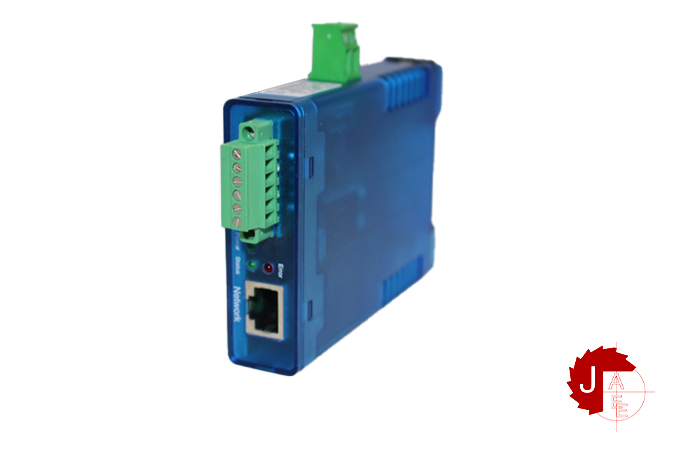

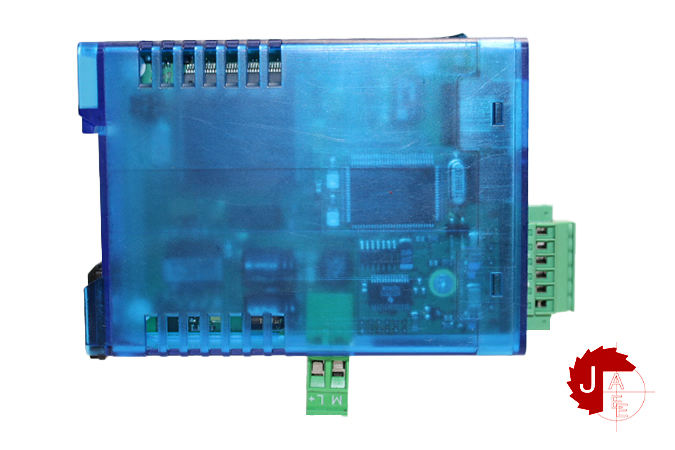

WuT 57641 Web-IO Analog-in

WuT 57641 Web-IO

Manufacturer: WuT

Type: Analog-in

Model: Web-IO

Connections and displays:
Network:
10/100BaseT autosensing
IPv6 on request
Current input:
0..20mA, 100Ohm
Voltage input:
0..10V, 1MOhm
Galvanic isolation:
Measurement inputs to network: min. 500V
E-mail function:
Mail for sending alarms or as reporting function
Supply voltage:
DC 12V .. 48V (+/-10%)
AC 12Veff .. 30Veff (+/-10%)
Current consumption:
AVG: 185mA @12VDC, 90mA @24VDC

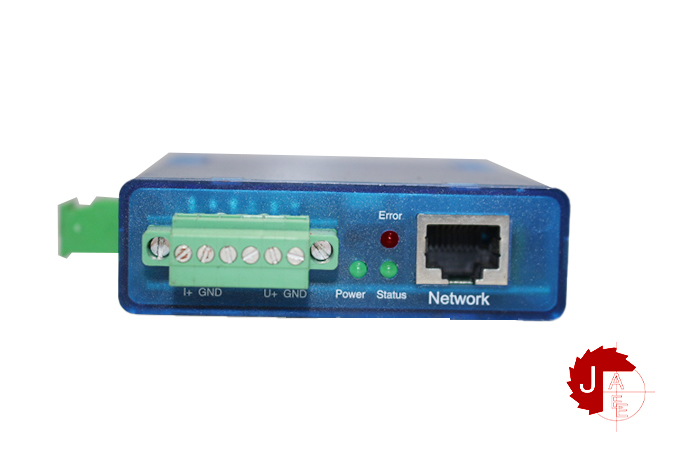

Displays:
1 LED Power
1 LED Status
1 LED Error
Measuring unit:
Resolution:
Current input: 2.5µA, voltage input: 1.25mV
Measuring error:
max. 0.5% FSR (Full Scale Range 0..20mA, 0..10V) TA = 0-60°C
Storage frequency:
1, 5, 15, 60 min
Memory depth (832k):
min. 79 days, max. 17 years
Deviation of the internal clock:
max. 4.32 min. / month (without time server calibration)
max. 3 sec. (with time server calibration)
Measurement value acquisition (can be polled over the network and can generate alarms if desired):
2/second
Saving in the internal data logger
1/Minute
Housing and other data:
Housing:
Plastic compact housing, 105x75x22mm (L x W x H)
Enclosure rating:
IP20
Weight:
approx. 200g
Ambient temperature:
Storage: -40..+70°C
Operation: 0..+60°C
Scope of delivery:
Web-IO Analog-In (0..20mA, 0..10V) for DIN rail mount
Product CD with WuTility management tool, OPC server,
Programming examples for VB/Delphi, SNMP-MIB
Reference manual in German/English

Please order power supplies separately as accessories
